Crankshaft: Specifications

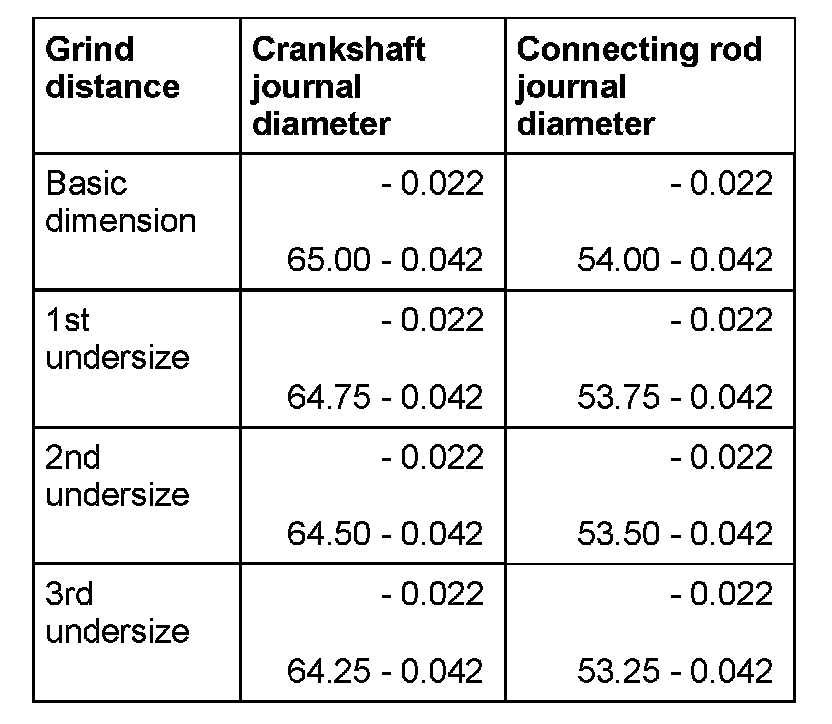

Crankshaft measurements

Axial and Radial Play, Measuring
Axial Clearance
Clearance when new 0.07 to 0.23 mm
Wear limit 0.25 mm
Radial Clearance
Clearance when new 0.018 to 0.045 mm
Wear limit 0.08 mm
