Rear

Windshield Wiper Blade Park Position, Adjusting

- Let wiper motor run into park position.

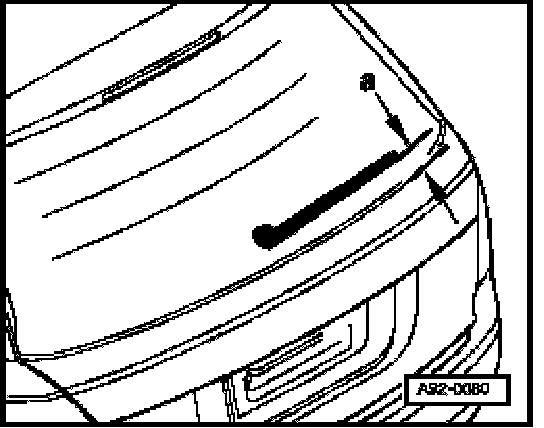

- Insert wiper blade at rear windshield and adjust as follows:
- Dimension a = 15 to 20 mm

NOTE: The dimension indicates the distance of the point of the wiper blade to lower edge of windshield.

- Tighten securing nut for wiper arm to 12 Nm.
- Operate wiper.
- If necessary, adjust wiper arm once again and tighten securing nut.
