Headlight Washer System Spray Jets, Remove and Install

Headlight Washer System Spray Jets, Removing And Installing

Removing
- Remove front bumper:







- Pull up spray jet cover on bumper and carefully disengage mounts -arrow-.

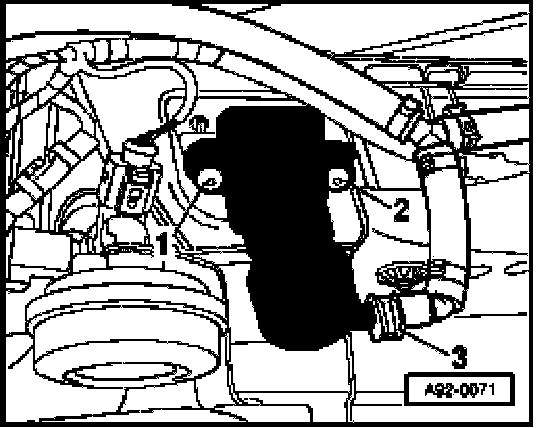

- Pull off water hose -3- (press release tab).
- Unscrew bolts -1- and -2- and remove spray jet.

Installing
Install in reverse order, paying attention to the following:
- Install front bumper:

Tightening torque
Component Nm
Spray jet to bumper 3
