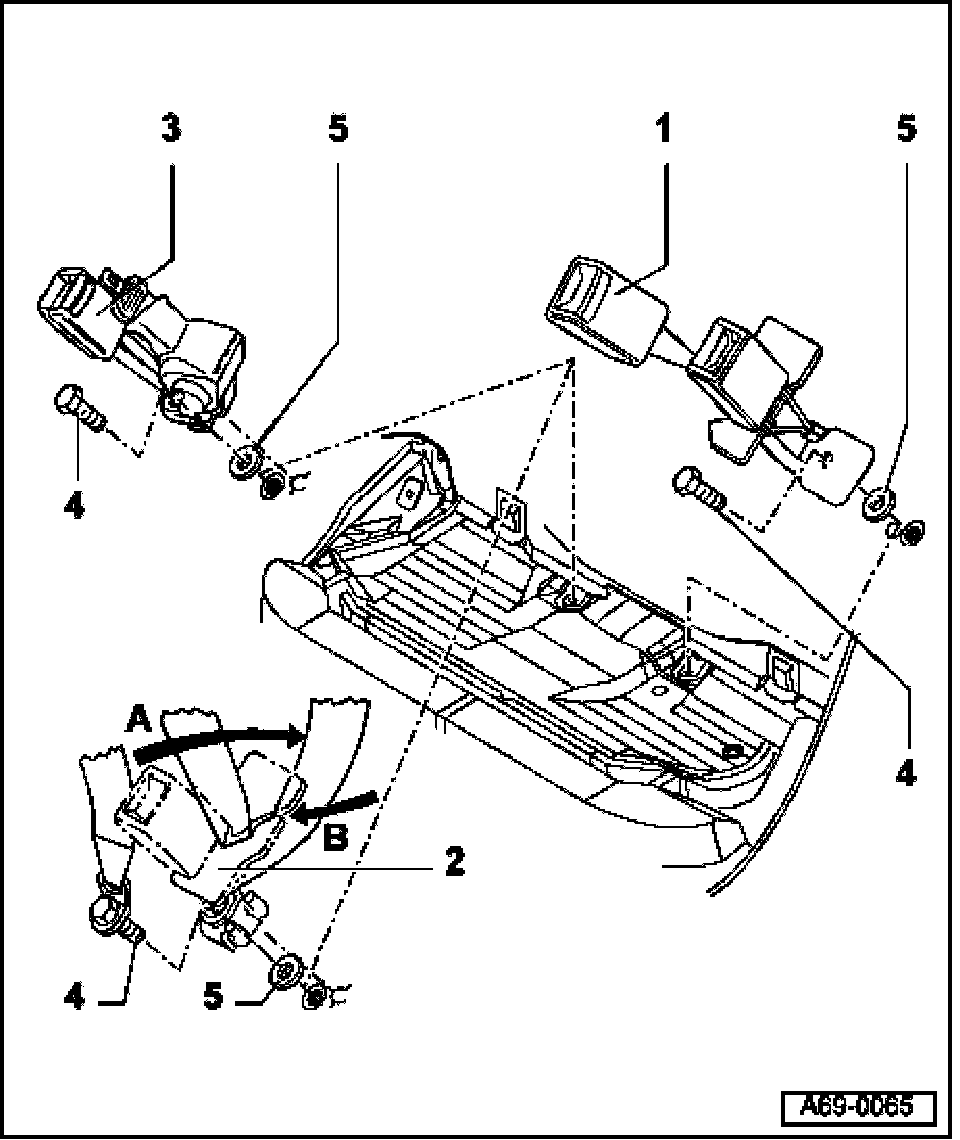

Attachment Points For Center Floor, Assembly Overview

Attachment Points For Center Floor, Assembly Overview







1 - Belt buckle
- Remove bolt -4- (1x).
- Always change gasket -5-.
- When installing, make sure buckle and/or lap belt engages in guide knob.
- Narrow side of buckle and/or lap belt must face in direction of travel.
2 - Lap belt
3 - Lap belt with retractor
4 - Bolt
- Tightening torque: 55 Nm
- Only use genuine equipment bolts
5 - Seal
- Always replace
