Sedan

High-mount Brake Light (sedan), Removing And Installing

Removing

NOTE: The high-mount brake light is accessible from luggage compartment via panel opening below rear shelf.

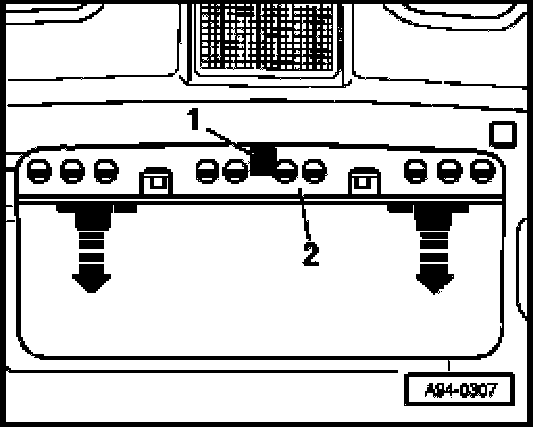

- Unplug connector -1- at high-mount brake light -2-.
- Pry off retaining clips in direction of arrow.
- Pull high-mount brake light out of panel opening from below.

Installing
Install in reverse order, paying attention to the following:

NOTE: Complete high-mount brake light must be replaced if LEDs are burned out.
