Cargo Area Light, Removing and Installing

Cargo Area Light (Avant), Removing And Installing

Special tools and equipment







- Hook for front end 3370

Removing

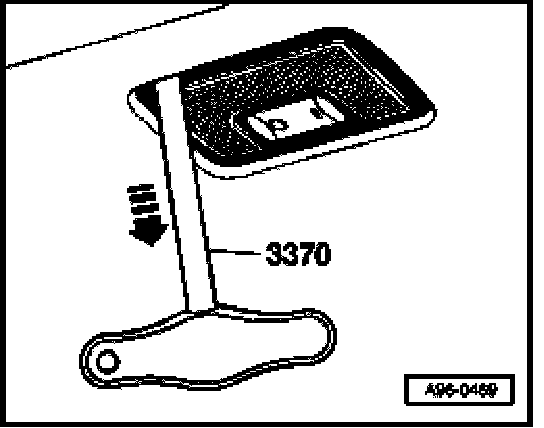

- Carefully pull cargo area light out of vehicle headliner using hook for front end 3370.
- Disconnect electrical harness connector.

Installing
Install in reverse order, paying attention to the following:
- Insert cargo area light into vehicle headliner opening and clip in.
