Contacts Assignment, Multi-Pin Connector on Instrument Cluster

Assignment Of Contacts On Multi-pin Connector On Instrument Cluster

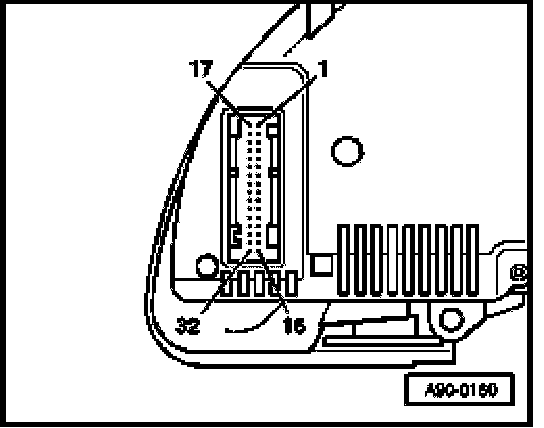

Multi-pin connector 32-pin, blue







1 - Low washer fluid level
2 - Low coolant level
3 - Fuel gauge sensor
4 - Coolant temperature
5 - Push button circuit 2, navigation
6 - Push button circuit 3, navigation
7 - Push button circuit, Telematic
8 - User prompting switch
9 - Not used
10 - Bonnet switch
11 - Fuel gauge sensor 2
12 - User prompting switch (out A)
13 - Not used
14 - Not used
15 - Not used
16 - VDC/TCS
17 - CAN convenience, high
18 - CAN convenience, low
19 - CAN Infotainment, low (entertainment information)
20 - CAN Infotainment, high (entertainment information)
21 - Ambient temp. -input
22 - S-contact
23 - Oil level/oil temperature
24 - Self-levelling suspension
25 - User prompting switch (enter)
26 - Not used
27 - Standing time
28 - User prompting switch (out B)
29 - Not used
30 - Transponder 2
31 - Transponder 1
32 - Terminal 31 (sensor)


Multi-pin connector 32-pin, green







1 - Terminal 58d
2 - Terminal 30
3 - Terminal 15
4 - Not used
5 - Speedometer input
6 - Speedometer output 2
7 - Airbag inverse
8 - Right turn signal
9 - Low brake fluid
10 - Left turn signal
11 - Trailer turn signal
12 - CAN drive, low
13 - CAN drive, high
14 - Terminal 61/charge indicator
15 - Not used
16 - Oil pressure 2
17 - Terminal 58s
18 - Terminal 31 load
19 - Terminal 31 load
20 - Not used
21 - Speedometer output 1
22 - ABS warning
23 - K-wire
24 - CAN drive, screen
25 - Tank cap switch
26 - CAN-Diagnostic Low
27 - CAN-Diagnostic Shield
28 - CAN-Diagnose High
29 - Headlight range control
30 - Belt buckle
31 - Outside buzzer
32 - Brake pad wear
