Side Windows - Removing/Installing

SIDE WINDOWS, REMOVING/INSTALLING
(FROM 1995 M.Y.)

Warning!
Always wear safety glasses and gloves when removing window glass.


REMOVING

Note:

^ Sedan side windows with PVC borders must be removed and installed as described in the procedure that follows.

^ Side windows for wagons can be removed and installed as before.

- Remove rear seat and backrest, -> Repair Group 72.

- Remove rear storage shelf, -> Repair Group 70.

- Remove cover for C-pillar, -> Repair Group 70.

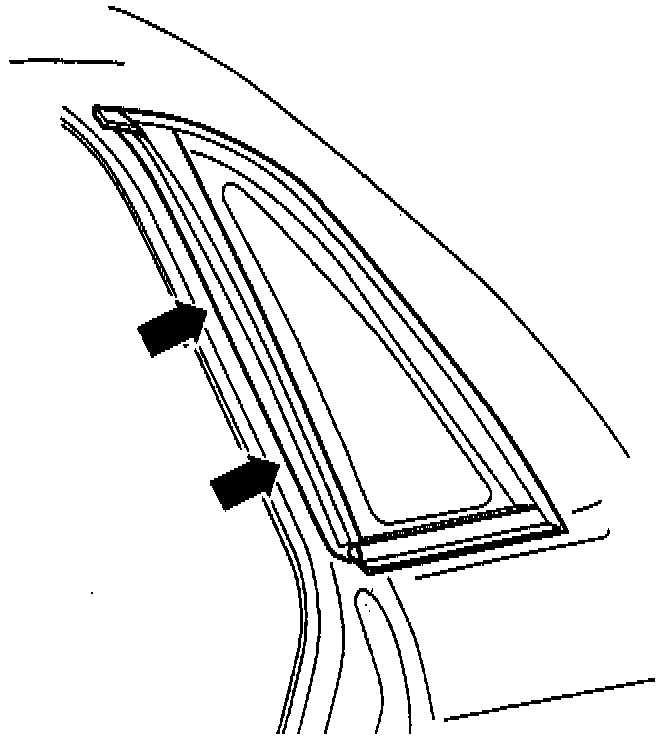

Fig. 1 - Side Window, Removing/installing:

- Drill out rivet heads (arrows) from PVC border on 0-pillar and punch out rivets.
