Central Locking System - Component Locations

GROUP: 57

NUMBER: 94-09

DATE: Nov. 15, 1994

SUBJECT:
Central Locking System

MODEL(s):
A6/S6 from 1995 m.y.

The following information describing the central locking system will be integrated into the next update of the 100/A6/S4/S6 Repair Manual microfiche, W42-544-1 92-F13.




CENTRAL LOCKING SYSTEM (FROM 1995 M.Y.)

Beginning with 1995 m.y. production the routing of vacuum lines for the central locking system was changed.

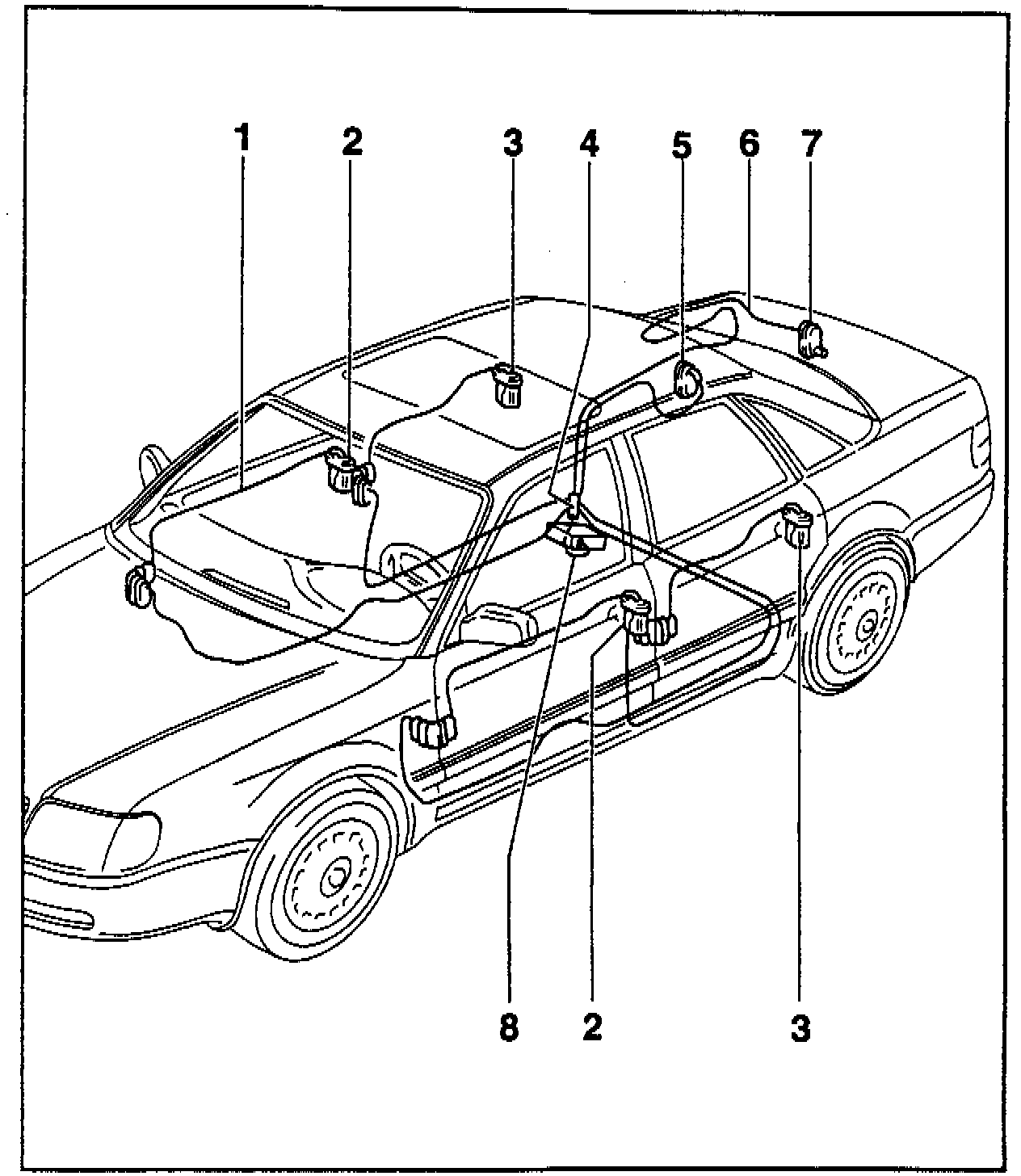

1 - Vacuum line

2 - Activator, right/left front doors

3 - Activator, right/left rear doors

4 - Multiple connector

^ The multiple connector is permanently attached to vacuum lines except for rear lid line.

^ Removing rear lid vacuum line

5 - Activator, gas flap

6 - Vacuum line, rear lid

7 - Activator, rear lid

8 - Pump for central locking system


Note:
The connectors for the activators cannot be removed by pulling; the locator clip must be disengaged first.

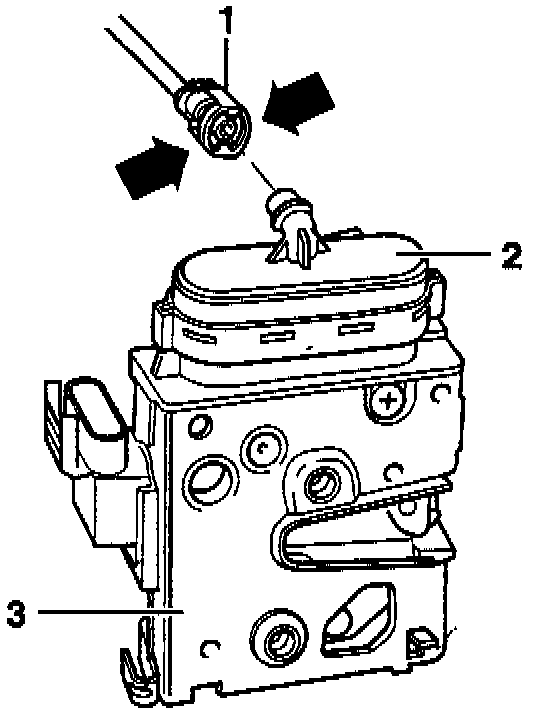

Fig. 1 Connector, removing

- Squeeze clip (arrows) to disengage locator.
- Remove vacuum line.

1 Vacuum line connector

2 Activator

3 Lock assembly
