With VAG 1551
Service Reminder Indicator (SRI):Beginning with October 1994 production, all 1995 m.y. Audi 100 (A6) use a new instrument cluster which includes a Service Reminder Indicator (SRI).
The instrument cluster is coded according to the engine and country variants as well as individual, scheduled service intervals. The instrument cluster must be coded initially at the Secondary PDI (or time of delivery) and whenever a replacement cluster is installed. In addition, SRI displays must be reset after each specified service or inspection is performed.
The system has no On Board Diagnostic capability.
Instrument cluster, replacing, resetting SRI example
Connect VAG 1551, select "Rapid data transfer", turn ignition on.
Press buttons -1- and -7- (Instrument Cluster). confirm with button -Q- and advance with -> button.
Press buttons -1- and -0- (Adaptation), and confirm with button -Q-.
Press buttons -0- and -5- (OEL), confirm with button -Q- and advance with -> button.
Enter adaptation values which represent the mileage and time remaining until the 7,500/12,000km oil change. (In the case of cluster replacement on a vehicle with 6,000km, the 6,000km and 90 days remaining until the 12,000 oil change represents a value of 00006 (distance) and 00009 (time).
Press -Q- button to confirm input.
Press buttons -0- and -6-, -0- and -7-, -0- and -8- make the necessary value calculations and press -Q- button to confirm new values.
Instrument cluster mileage display, setting
WARNING!
This setting is only possible with a new cluster
This setting is possible only one time for each instrument cluster.
Only a larger setting value can be entered.
If the wrong information has been entered and confirmed; correction is not possible. The instrument cluster must be replaced
Note:
Setting of service interval display must be done in kilometers. Therefore calculate the value from miles to km. Multiply miles by 1.6 to convert to km.
- Press buttons -1- and -1- "Login-Procedure" function 11.
Rapid data transfer Q
11 - Login-Procedure
- Press -Q- button to confirm input.
Login-Procedure Enter code number XXXXX
- Input code number 13861.
- Press -Q- button to confirm input.
Rapid data transfer HELP
Select function XXXXX
- Press buttons -1- and -0- to select "Adaptation" function 10.
Rapid data transfer Q
10 - Adaptation
- Press -Q- button to confirm input.
Channel number entered XX
- Press button -0- and -9- to select channel 9.
- Press -Q- button to confirm input.
Channel 9 Adaptation 2 ->
<-13->
- Advance through program sequence with -> button.
Channel 9 Adaptation 2 Q
XXXXX
- Enter adaptation value.
Example: Kilometer status = 89627; adaptation value = 08963
- Round ones value up to the next tens and drop ones place (627 becomes 630; drop zero).
- Add zero in hundred-thousands place. Ones: round to the next tens
X Hundred Thousands: 100000 - 900000 km
X Ten Thousands: 10000 - 90000 km
X Thousands: 1000 - 9000 km
X Hundreds: 100 - 900 km
X Tens: 10 - 90 km
- Press -Q- button to confirm input.
Channel 9 Adaptation 2 Q
<-13->
- Press -Q- button to confirm input.
Channel 9 Adaptation 2 Q
Store revised value?
- Press -Q- button to confirm input.
Channel 9 Adaptation 2
Changed values stored
- Press -> button to end coding.
Rapid data transfer HELP
Select function XX
- Press button -0- and -6- "End Output" function 06.
Rapid Data Transfer Q
06 - End Output
- Press -Q- button to confirm input.
SRI, inspection indicator (In 1), resetting (distance)
Note:
Setting of service interval display must be done in kilometers. Therefore calculate the value from miles to kilometers. Multiply miles by 1.6 to convert to km.
- Press buttons -0- and -6-to select channel 6.
- Press -Q- button to confirm input.
channel 6 Adaptation 30 ->
<-13->
- Press -> button to advance through program sequence.
Channel 6 Adaptation 30 Q
Input adaptation value XXXXX
- Enter value between 0 km (00000) and 30000 km (00030).
The value can be entered in steps of 1000 km.
Example: 15000 mi/24000 km, therefore enter 00024.
- Press -Q- button to confirm input.
Channel 6 Adaptation 24 Q
<-13->
- Press -0- button to confirm input.
Channel 6 Adaptation 24 Q
Store changed value?
- Press -Q- button to confirm input.
Channel 6 Adaptation 24 4
Changed value is stored
- Press -> button to end coding.
Rapid data transfer HELP
Select function XX
- Press buttons -1- and -0- to select "Adaptation" function 10.
Rapid data transfer Q
10 - Adaptation
- Press -Q- button to confirm input.
Adaptation
Insert channel number XX
SRI, inspection indicator (In 1), resetting (time)
- Press button -0- and -7- to select channel 7.
- Press -Q- button to confirm input.
Channel 7 Adaptation 36 ->
<-13->
- Advance through program sequence with button ->.
Channel 7 Adaptation 36 Q
Input adaptation value XXXXX
- Enter adaptation value between 0 days (00000) and 360 days (00036). The value can be entered in steps of 10 days. Example: 360 days ,therefore enter 00036.
Note:

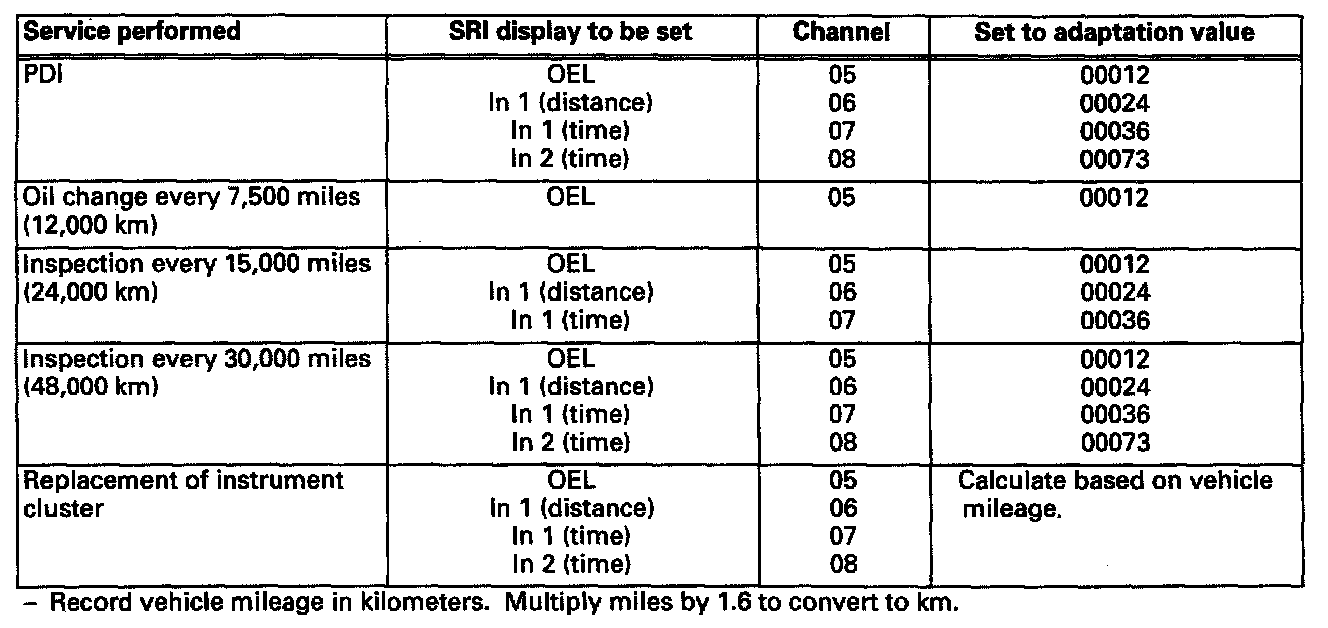

SRI Setting Table:
Inspection table
- Press -Q- button to confirm input.
Channel 7 Adaptation 36 Q
<-13->
- Press -Q- button to confirm input.
Channel 7 Adaptation 36 Q
Store changed value?
- Press -Q- button to confirm input.
Channel 7 Adaptation 36 ->
Changed value is stored
- Press -> button to end coding.
Rapid data transfer HELP
Select function XX
- Press buttons -1- and -0- to select "Adaptation" function 10.
Rapid data transfer Q
10 - Adaptation
- Press -Q- button to confirm input.
Adaptation
Insert channel number XX
SRI, inspection indicator (In 2), resetting (time)
- Press button -0- and -8- to select channel 8.
- Press -Q- button to confirm input.
Channel 8 Adaptation 66 ->
<-13->
- Advance through program sequence with -> button.
Channel 8 Adaptation 66 Q
Input adaptation value XXXXX
- Enter Adaptation value between 0 days (00000) and 730 days (00073). The value can be entered in steps of 10 days. Example: 730 days, therefore enter 00073.
- Press -Q- button to confirm input.
Channel B Adaptation 73 Q
Store changed value?
- Press -Q- button to confirm input.
Channel 8 Adaptation 73 Q
Changed value stored
- Press button to end coding.
Rapid data transfer HELP
Select function XX
- Press buttons -1- and -0- to select "Adaptation" function 10.
Rapid data transfer Q
10 - Adaptation
- Press -Q- button to confirm input.
Adaptation
Insert channel number XX
Instrument cluster, setting SRI and mileage
Note:
Instrument cluster must be coded before setting if it was replaced.
- Press button -1- to select "Rapid data transfer" operating mode 1.
Rapid data transfer HELP
Insert address word XX
- Press buttons -1- and -7- to insert "Instrument Cluster" address word 17.
Rapid data transfer Q
17 - Instrument Cluster
- Press -Q- button to confirm input.
Rapid data transfer
Scan Tool sends address word 17
- After 5 seconds the display indicates a part number and the control module code.
4D0 919 033 C4 Instrument cluster D03 coding 00262 WSC 06812
- Press -> button.
Rapid data transfer Q
Select function XX
- Press buttons -1- and -0- to select "Adaptation" function 10.
Rapid data transfer Q
10 - Adaptation
- Press -Q- button to confirm input.
Adaptation
Insert channel number XX
SRI, oil change indicator, resetting (distance)
Note:
Setting of service interval display must be done in kilometers. Therefore calculate the value from miles to kilometers. Multiply miles by 1.6 to convert to km.
Adaptation number is for example only
SRI Setting Table:
- Press buttons -0- and -5- to select channel 5.
- Press -Q- button to confirm input.
Channel 5 Adaptation 15 ->
<-13->
- Advance through program with -> button.
Channel 5 Adaptation 15 Q
Input adaptation value XXXXX
- Input 5 digit adaptation value between 0 km (00000) and 15000 km (00015).
- The value can be entered in steps of 1000 km Example: 7500 miIl2OOO km, therefore enter 00012.
Channel 5 Adaptation is Q
Input adaptation value 00012
- Press -Q- button to confirm input.
Channel 5 Adaptation 12 Q
<-13->
- Press -Q- button to confirm input.
Channel S Adaptation 12 Q
Store changed value?
- Press -Q- button to confirm input.
Channel 5 Adaptation 12 4
Changed value is stored
- Press -> button to end coding.
Rapid data transfer HELP
Select function XX
- Press buttons -1- and -0- to select "Adaptation" function 10.
Rapid data transfer Q
10 - Adaptation
- Press -Q- button to confirm input.
Adaptation
Insert channel number XX

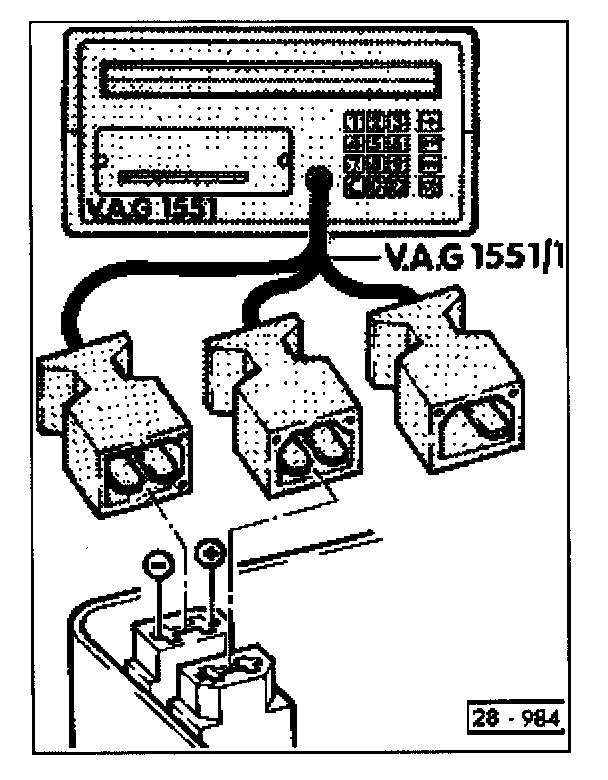

VAG 1551 Scan Tool (ST), connecting
- Connect VAG 1551 scan tool to Data Link Connectors (DLC) in auxiliary relay panel I (left side of water plenum) using diagnostic cable VAG 1551/1 as follows:
- Remove cover from auxiliary relay panel I in plenum.
- Connect black connector to black DLC (battery positive voltage (B+) supply to DLC).
- Connect white connector to white DLC.
Note: The blue scan tool connector is not used
- Switch ignition ON.
- Operating modes -1- and -2- appear alternately
V.A.G - On Board Diagnostic HELP
1 - Rapid data transfer
2 - Blink code output
Instrument cluster coding, checking
- Press button -1- to select "Rapid data transfer" operating mode 1.
Rapid data transfer HELP
Insert address word XX
- Press buttons -1- and -7- to select "Instrument Cluster" address word 17.
Rapid data transfer Q
17 - Instrument Cluster
- Press -Q- button to confirm input.
Rapid data transfer
Scan Tool sends address word 17
- After 5 seconds the display indicates a part number and the control module code.
4D0 919 033 C4 Instrument cluster D03-> Coding 00262 WSC 06812
- Advance through program sequence with button.
Rapid data transfer HELP
Select function XX
Instrument cluster, coding
Note: Perform the following steps only after cluster replacement, or if the code is not as specified below
Rapid data transfer HELP
Select function XX
- Press button -0- and -7- "Code Control Module" function 07.
Rapid data transfer Q
07 - Code Control Module
- Press -Q- button to confirm input.
Control module code
Enter code number XXXXX (0-32000)
- Input Code number from code chart table below.
00 Irrelevant field
2 USA
3 Canada
6 6-cylinder engine
2 Gasoline engine
Control module code Q
Enter code number 00262 (0-32000)
- Press -Q- button to confirm input.
4D0 919 033 C4 Instrument Cluster D03->
Coding 00262 WSC 06812
- Press -> button to end coding.
Rapid data transfer HELP
Select function XX
- Press button -0- and -6- to select "End Output" function 06.
Rapid data transfer Q
06 - End Output
- Press -Q- button to confirm input.
Rapid data transfer HELP
Select function XX
Instrument cluster, replacing General notes
Before removing instrument cluster, note vehicle mileage
After replacing the instrument cluster, the vehicle mileage and all SRI indicators are to be re-established/coded into the new cluster.
Note the Airbag safety information, where applicable.
Functional tests of the instruments should be conducted.
See applicable wiring diagram for routing of terminals and checking multi-pin connectors.
Test requirements
Fuses OK, check according to wiring diagram.
Always check the coding of the instrument cluster with VAG 1551 scan tool.
Note: "Automatic Test Sequence" function 10 is not possible with VAG 1551 scan tool with software status 4.0 (version 4.0 card). The control modules should be checked individually using their respective address words. with the update of test software this function will be possible.
