Rear

Rear brake pads, replacing (S4/S6 models)

Removing

- Remove wheels.

- Mark positions of brake pads that are to be used again. Install again in same place to ensure uniform braking.






- Remove brake caliper housing.

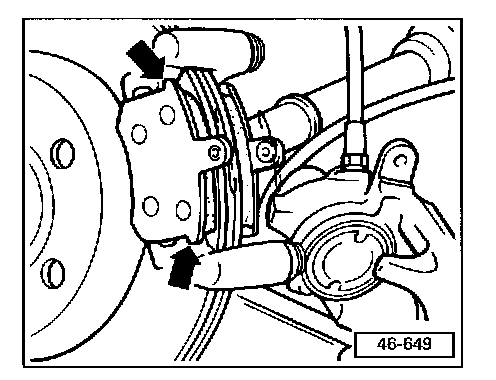

- Remove brake pads.

WARNING: Brake fluid is poisonous and must never be extracted by mouth through a hose. If brake fluid contacts eyes or skin, flush or wash adequately to prevent irritation. Get medical attention if necessary.

CAUTION: Extract part of the brake fluid from the brake fluid reservoir before pushing back the pistons.
Use the bleeder bottle or a plastic bottle, which is used only for brake fluid, for extracting the fluid.

Installing

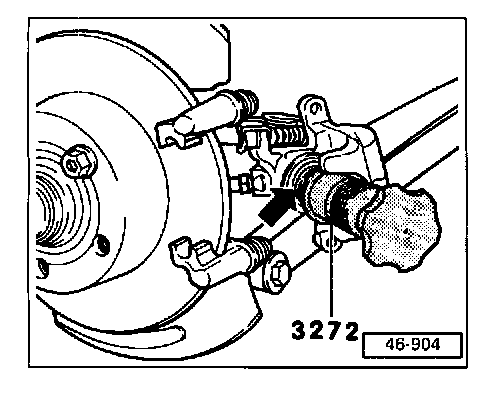

- Press piston in by turning clockwise and pushing forcefully.

- Install brake pads.

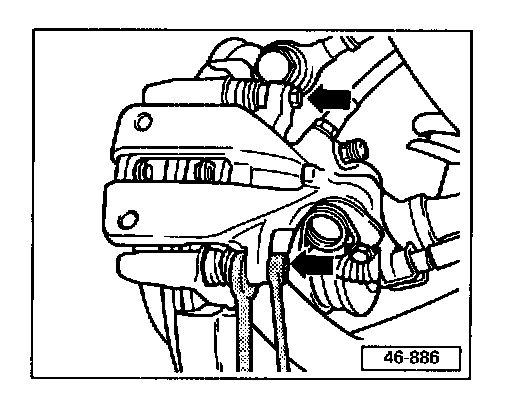

- Install brake caliper housing and tighten. Tightening torque: 35 Nm (26 ft lb)

Note: Four self-locking bolts are included in the repair kit and they must all he installed.

CAUTION: Perform basic adjustment of rear wheel brake thoroughly each time brake pads are changed, refer to Adjustments Adjustments
