Over-Center Spring

OVER-CENTER SPRING
- Remove left (driver's side) storage tray.
- Remove left footwell air outlet.
- Remove protective plate between central electric panel and pedal linkage.

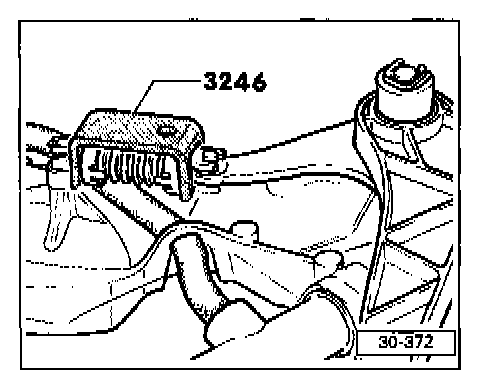

- Press retaining clip 3246 sideways over over-center spring.
- Operate clutch pedal and remove over-center spring together with retaining clip.

Installation is the reverse order of removal.
