Instrument Cluster Coding, Checking

Instrument cluster coding, checking

1. Select rapid data transfer

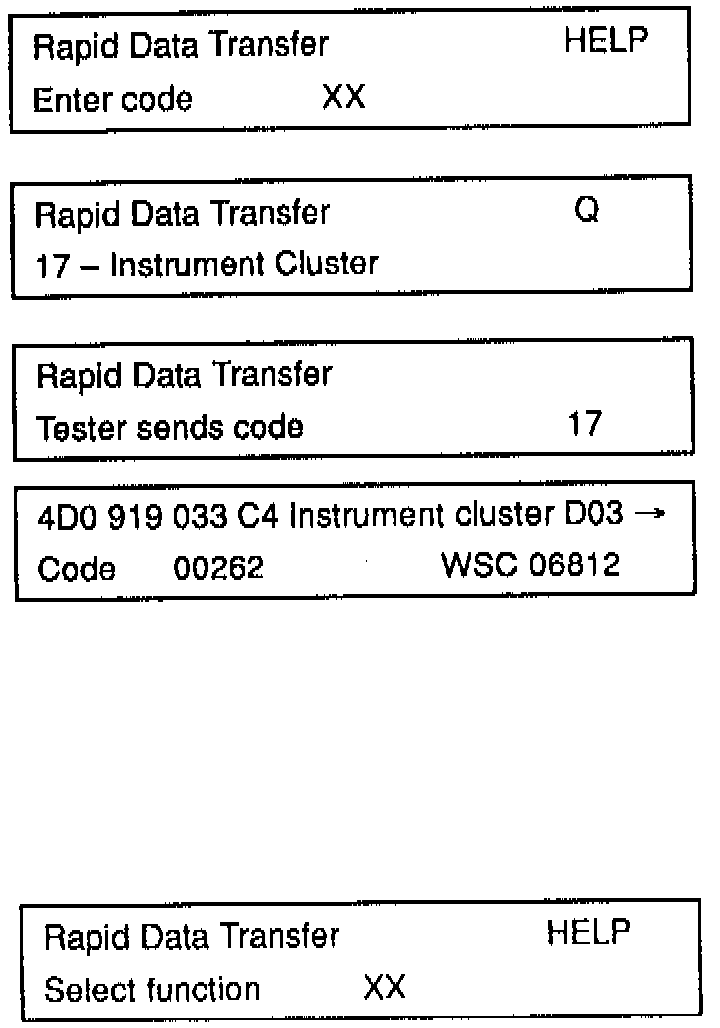

Display shows: See Box 1 above image.

2. Push button 1 and 7.

Display shows: See Box 2 above image.

3. Confirm input with Q-button

Display shows: See Box 3 above image.

After 5 seconds the display shows a part number and the control module code: See Box 4 above image.

Note:
Refer to Instrument Cluster Coding.

- Advance through program sequence with -> button.

Display shows:

Rapid Data Transfer HELP
Select Function XX
