Child Restraint Anchorage, Installing

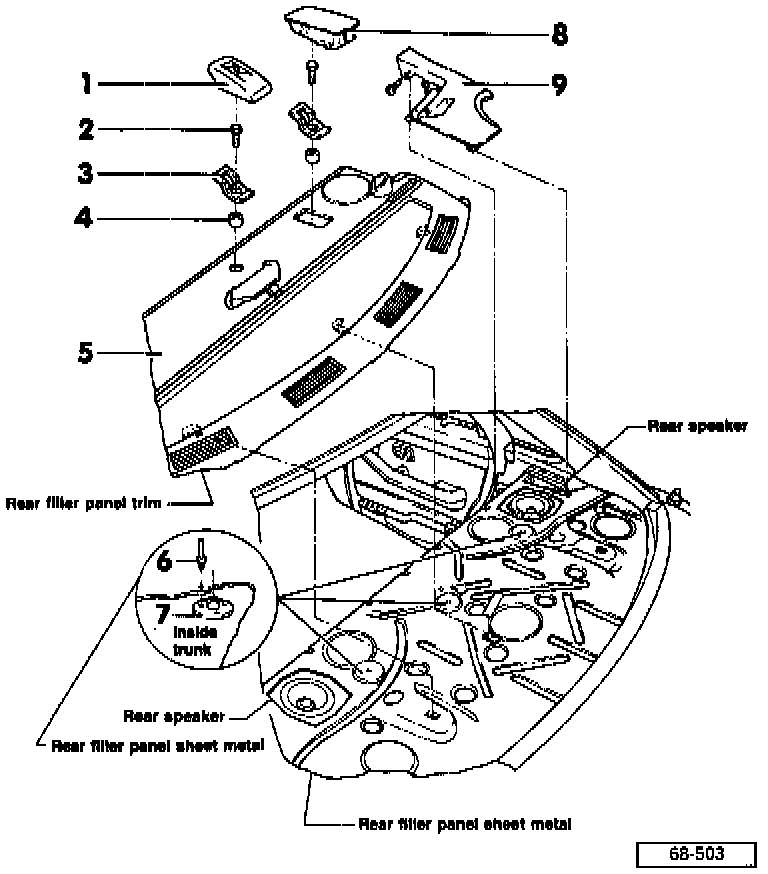

Child Restraint Anchorage, Assembly (Rear Seat - Sedan Only):

- Remove rear seat bench, seatback.
- Open rear lid.
- From inside trunk locate anchorage points for washer 7, pop-rivets 6 in rear filler panel sheet metal.
- Points in line between rear speakers
- Mark center of anchor point hole on rear of filler panel trim.
- Remove rear filler trim panel.
- Drill a 8.0 mm (5/16 in.) starter hole in rear filler trim panel at center mark.

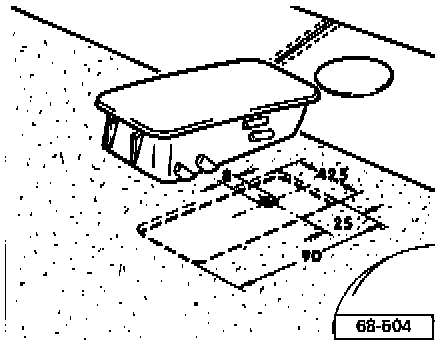

- Enlarge hole to dimensions shown.
- Measurements in mm


CAUTION!
Washer -7- is only to be riveted to the rear filler panel sheet metal.


- Using pop-rivets 6, mount washer 7 to under side of filler panel sheet metal.
- Mount spacer sleeve 4, anchor bracket 3.
- Install bolt 2.
Tightening torque: 25 Nm (18 ft lb)
- Install cover 1 onto anchor bracket.


NOTE: Cap 8 is only used to cover hole in rear filler panel trim when anchor bracket is removed or not in use.
