Valve Cover: Service and Repair

Cylinder head cover, installing

CAUTION: Part numbers are listed for reference only. Always check with your Parts department for the latest information.
The inside and outside surfaces of the cylinder head cover gasket must be brushed in with silicone lubricant D 007 00004 lightly before installation.

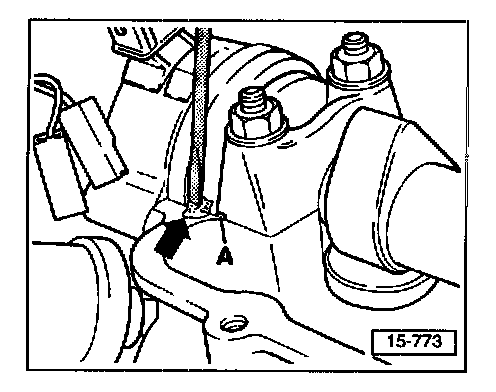

- Carefully coat four edges on cylinder head sealing surfaces with Silimate, Part No. AMV 17400401, using a small screwdriver. Silimate must be kept out of oil opening -A-.
