Backrest Adjustment Motor, Removing and Installing

Removing
- Remove seat from vehicle, Service and Repair
- Remove seat backrest, Service and Repair

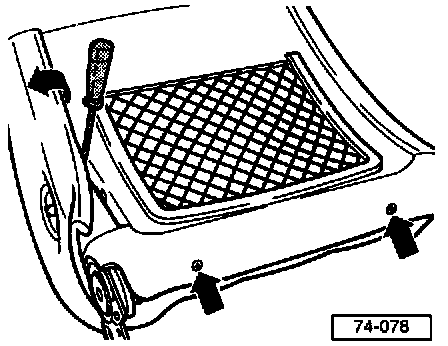

- Remove screws (arrows).





- Using screwdriver, carefully pry backrest cover from trim, as shown.
- Pull rear trim down and off seatback.

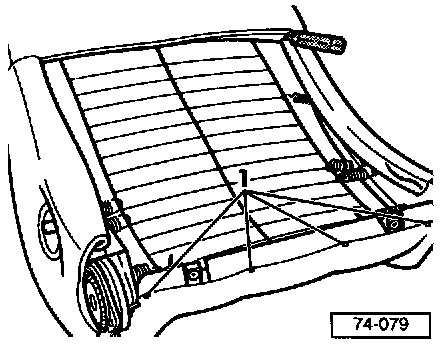

- Straighten upholstery hooks -1-.





- Unhook cover and pull forward.

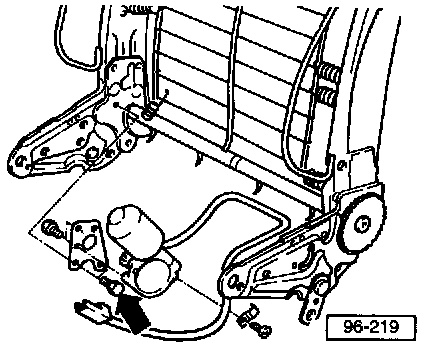

- Remove bolts (arrow) for adjuster motor bracket.





- Cut tie wraps, and remove motor with bracket.
