Adjustment Motors, Removing and Installing

Removing


CAUTION!
During repair involving removal or disconnection of actuators from drive cables, ensure the actuators are not turned.


- Remove seat from vehicle, [1][2]Component Tests and General Diagnostics

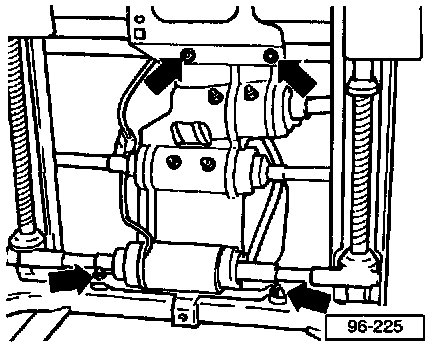

- Remove screws for motor mount (arrows).
- While pulling drive shaft guard tubes and drive shafts from adjuster motors, remove mounts with motors.
- Disconnect 2-point connectors to motors.
- Remove motor mounting screws, remove motor.

Installing
Install all components in reverse order of removal.
