Transceiver, Installing (A6/S6, Sedan Only)

Installing transceiver part no. 441 035 002B

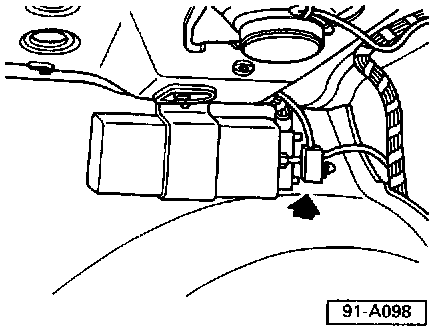

- Attach multi-pin connector to transceiver ensuring fuse (arrow) is exposed.
- Attach antenna cable to transceiver.
- Place mounting bracket, part no. 4A5 862 371 A, over transceiver.
- Mount transceiver and bracket so that connectors face forward and transceiver connector wiring points up.

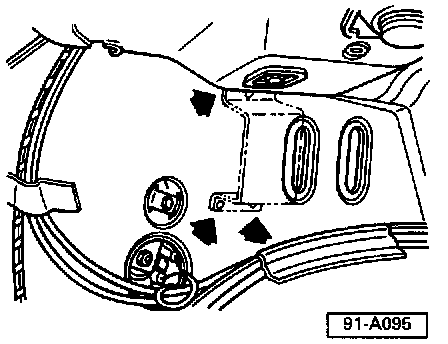

- Install mounting bracket securing screws (arrows) and tighten.
