Hands-Free Speaker, Assembly and Installing

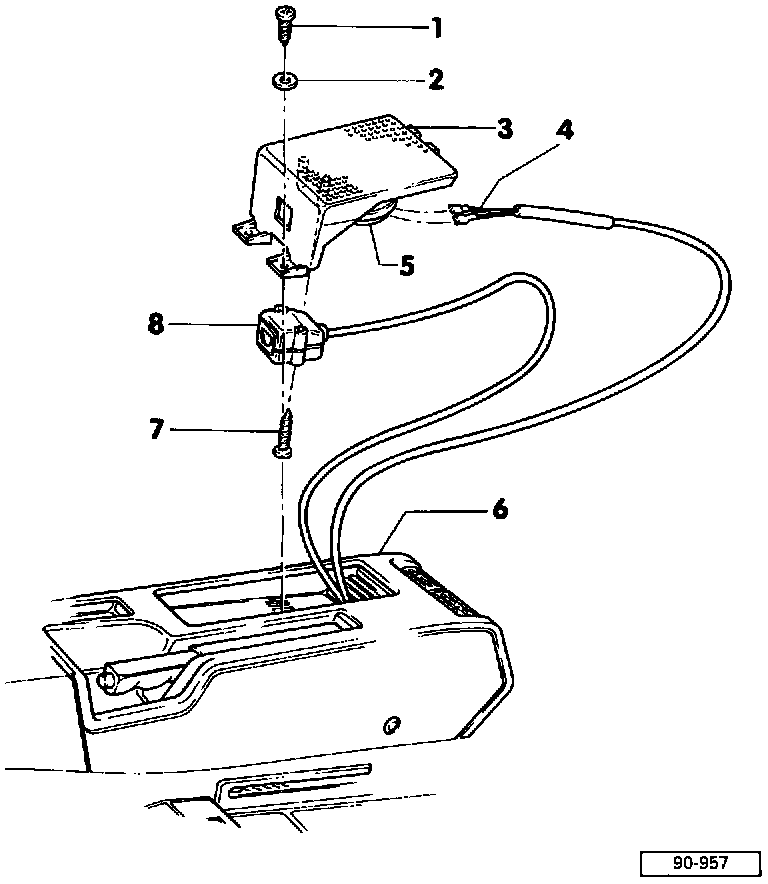

Hand-free Speaker, Assembly ( 100S, 100CS ):

1 - Screw
- 1.5 Nm (13 in lb)
- Installed in production
2 - Washer
- Equipped with vehicle
3 - Speaker grill
- Equipped with vehicle
4 - Speaker wire harness
- Installed in production


NOTE: The wire harness may be down inside the Center console


5 - Speaker
- Part no. 893 035411
6 - Center console
- Equipped with vehicle
7 - Screws
- 1 Nm (9 in lb)
- Installed in production
8 - Telephone handset modular connector
- Equipped with vehicle

Speaker installation





The hands-free speaker is located in the center console.


CAUTION!
Use care when removing and installing speaker grill. Tabs on the rear of the grill can be broken off if the grill is forced or removed and installed improperly.

- Remove felt lining from center console tray.

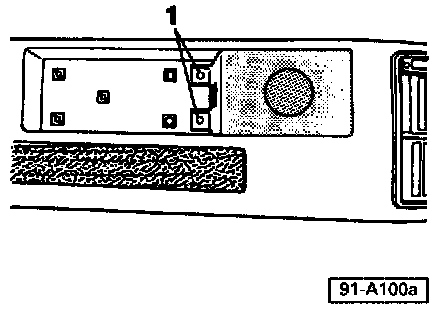

- Remove speaker grill screws -1- and carefully remove speaker grill.

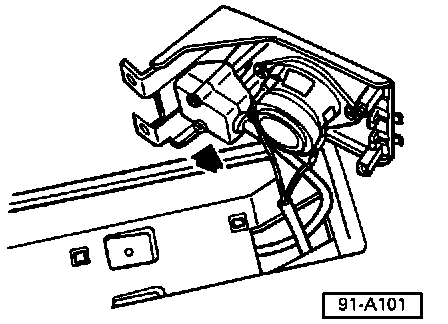

- Remove screws from telephone handset connector (arrow) and remove connector from grill.
- Install speaker using retaining (speed) clips part no. N 0128543 onto pins in grill.
- Attach speaker wire harness to speaker.
Install in reverse order of removal.
