Cellular Phone: Locations

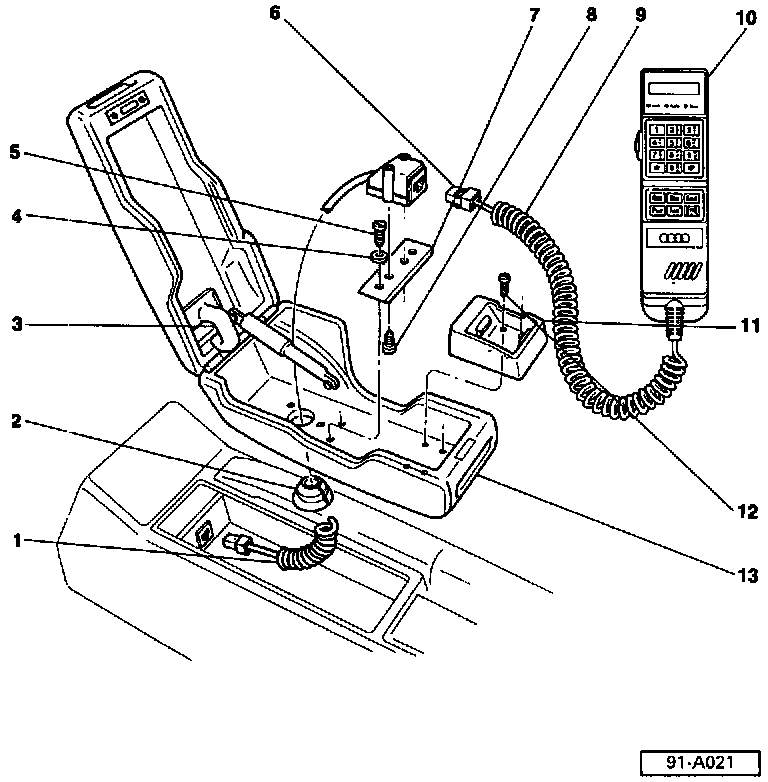

Cellular Telephone, System Components ( S4 ):

1 - Short cord
- Part no. 441 060 178A
- Provides wire connection flexibility so armrest can swing up or down
2 - Grommet,
- Part of the armrest
3 - Handset cable guide
- Part no. 441 862 415 01C
4 - Washer
- Part no. N 011 523 18
5 - Screw
- Part no. N 904 555 03
6 - Handset eight-pin modular connector
- Part of the handset
7 - Short cord mounting plate
- Part no. 441 862 411C
8 - Screw
- Part no. N 904 347 02
9 - Handset cord
- Comes with handset
10 - Handset
- Part no.441 035 104A
- Located in driver armrest
11 - Handset cradle
- Part no. 441 035 498A
- Fastened to driver armrest
12 - Screw
- Comes with cradle
- 4 pieces
13 - Armrest
- Installed in production


CAUTION!
Part numbers are for reference only. Always check with the parts department for the latest information.
