Display Group 08 & 09, Channels 1 - 4
Display Group 08 & 09, Channels 1 - 4

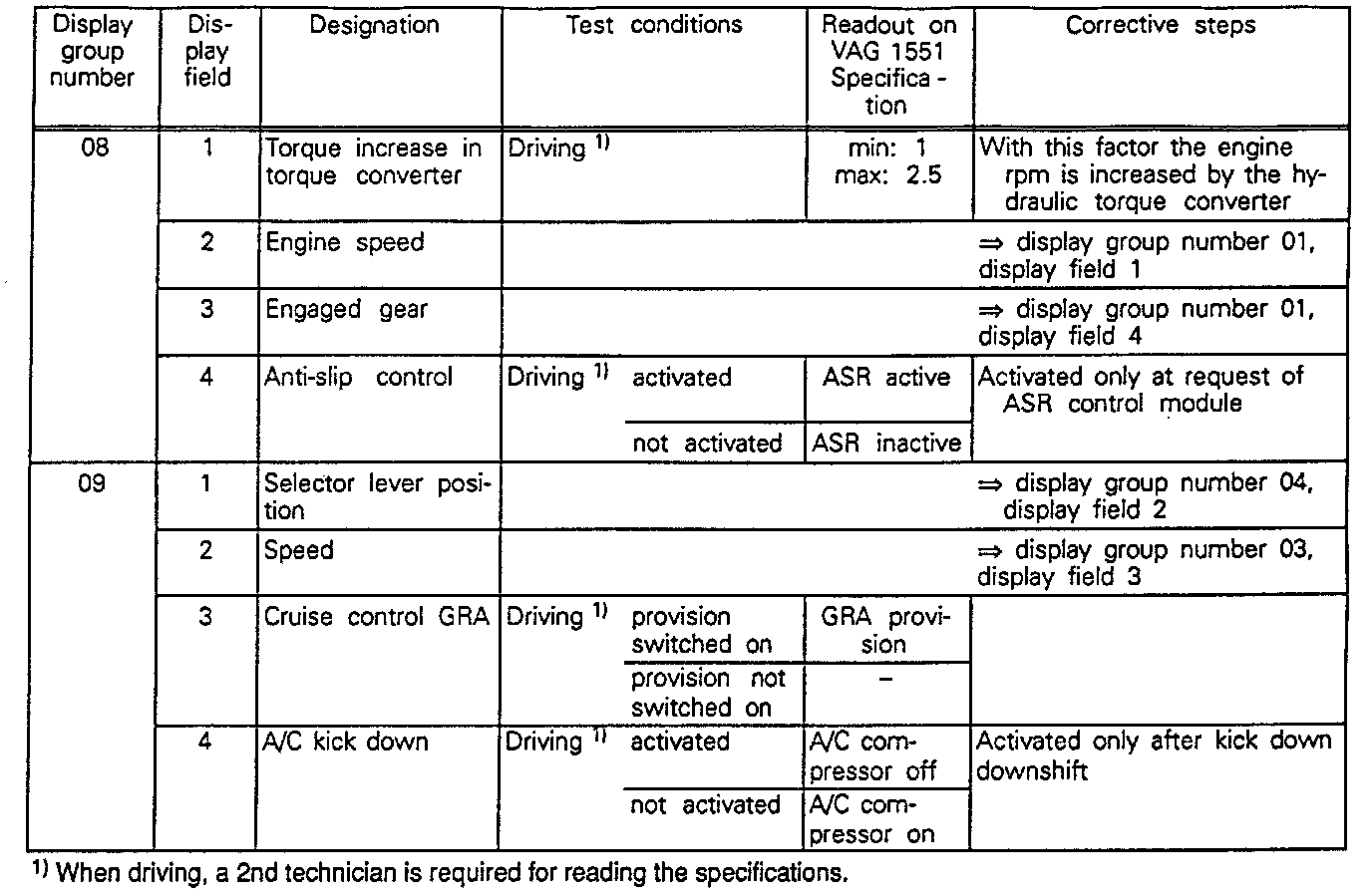

Display Group 08 & 09, Channels 1 - 4:
