Read Measuring Value Block (Function 08)
>>
Measuring Value Block Troubleshooting Charts
>>

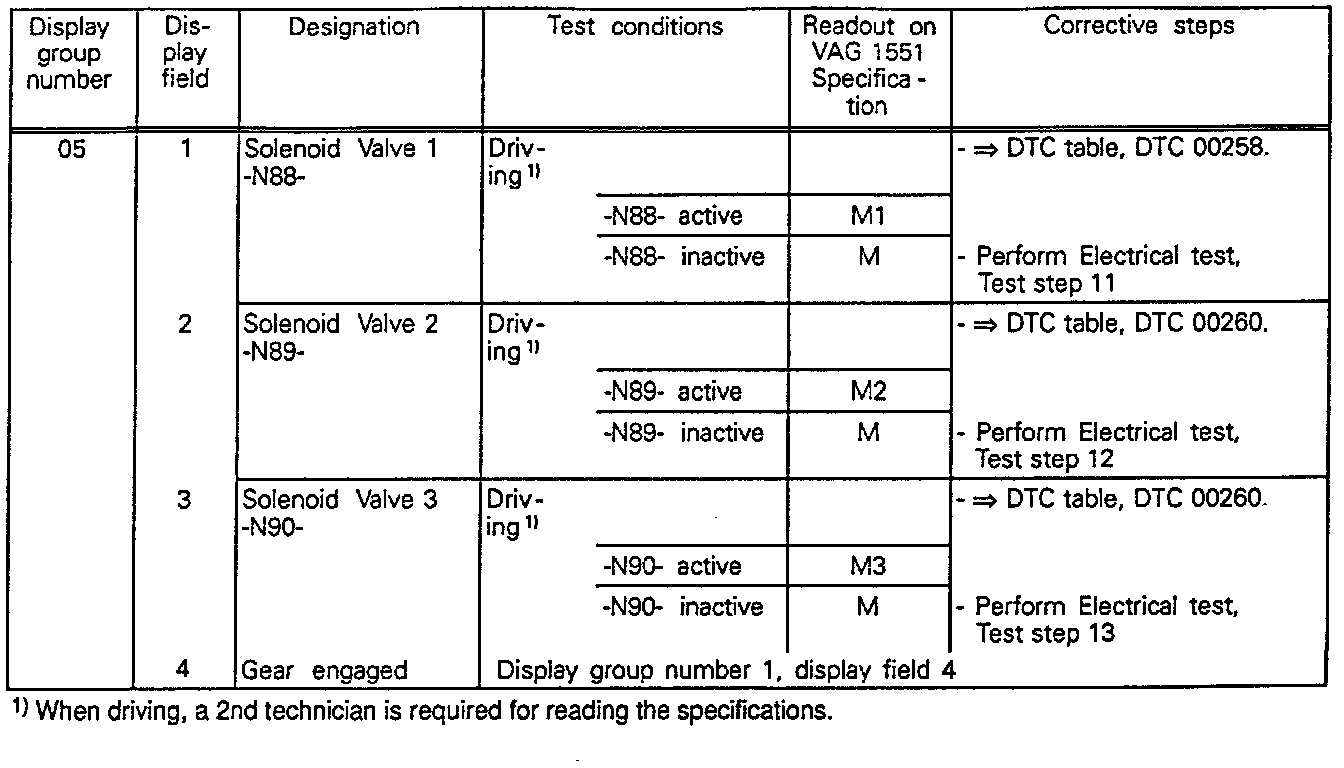

Display Group 05, Channels 1 - 4
Display Group 05, Channels 1 - 4
Display Group 05, Channels 1 - 4:
