Home
>>
Audi
>>
1995
>>
A6 Quattro Wagon (4A5) V6-2.8L (AAH)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Scan Tool Testing
>>
Read Measuring Value Block (Function 08)
>>
Measuring Value Block Troubleshooting Charts
>>

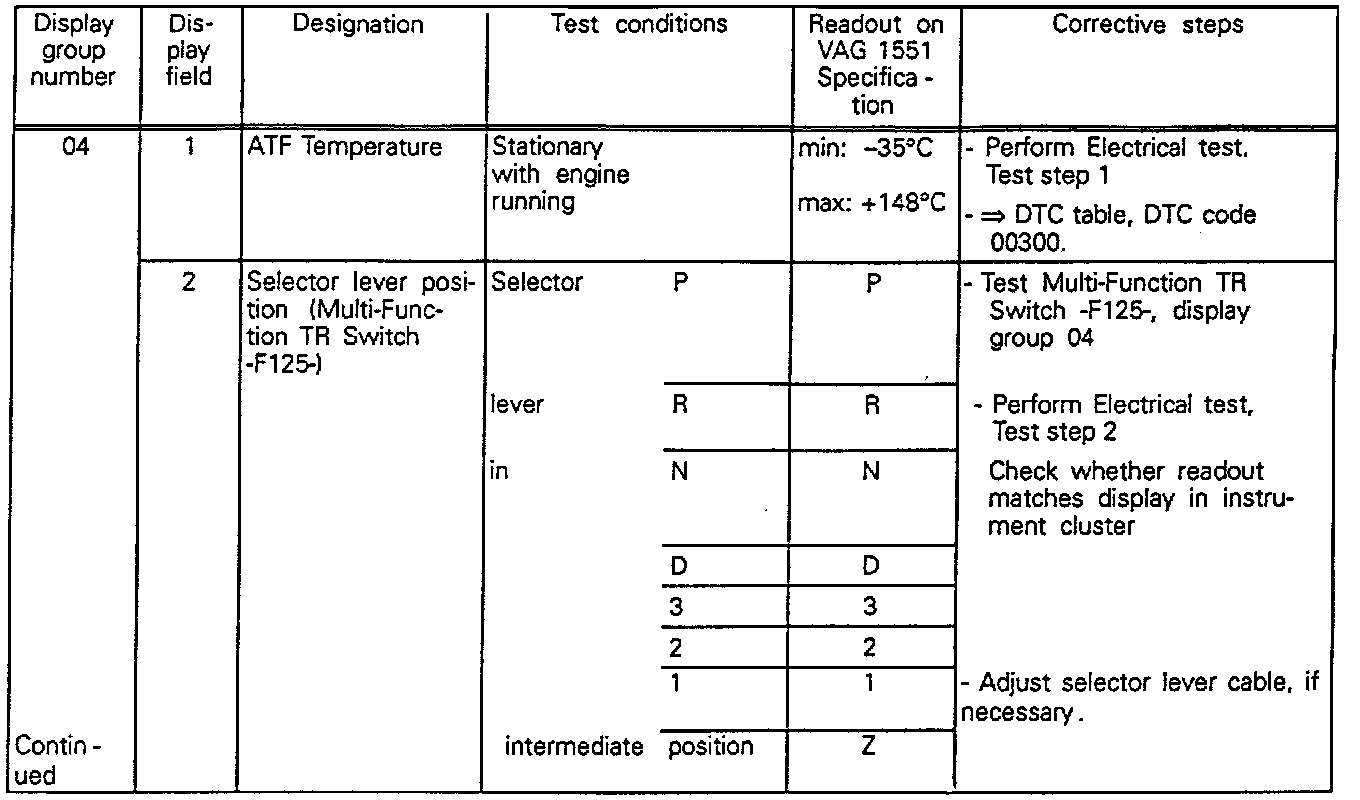

Display Group 04, Channels 1 - 2
Display Group 04, Channels 1 - 2
Display Group 04, Channels 1 - 2:
