Read Measuring Value Block (Function 08)
>>
Measuring Value Block Troubleshooting Charts
>>

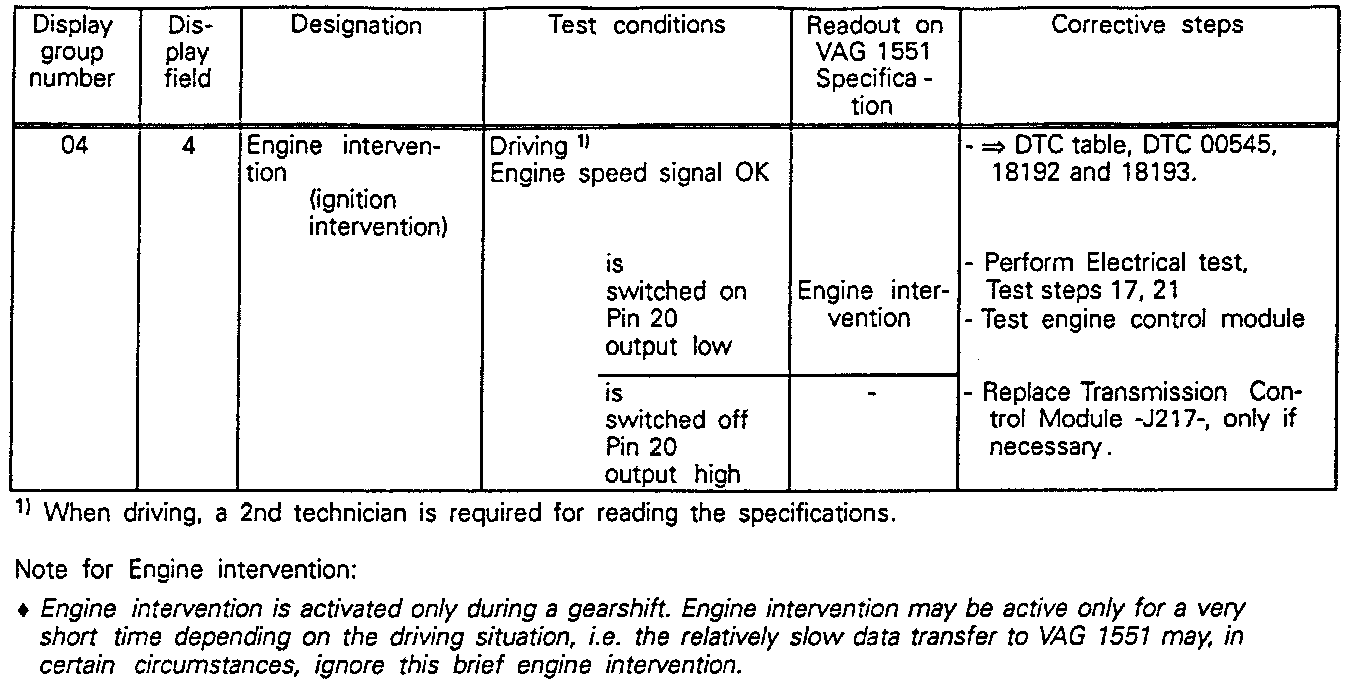

Display Group 04, Channel 4
Display Group 04, Channel 4
Display Group 04, Channel 4:
