Read Measuring Value Block (Function 08)
>>
Measuring Value Block Troubleshooting Charts
>>
Display Group 05, Channels 1 and 2
Display Group 05, Channels 1 and 2

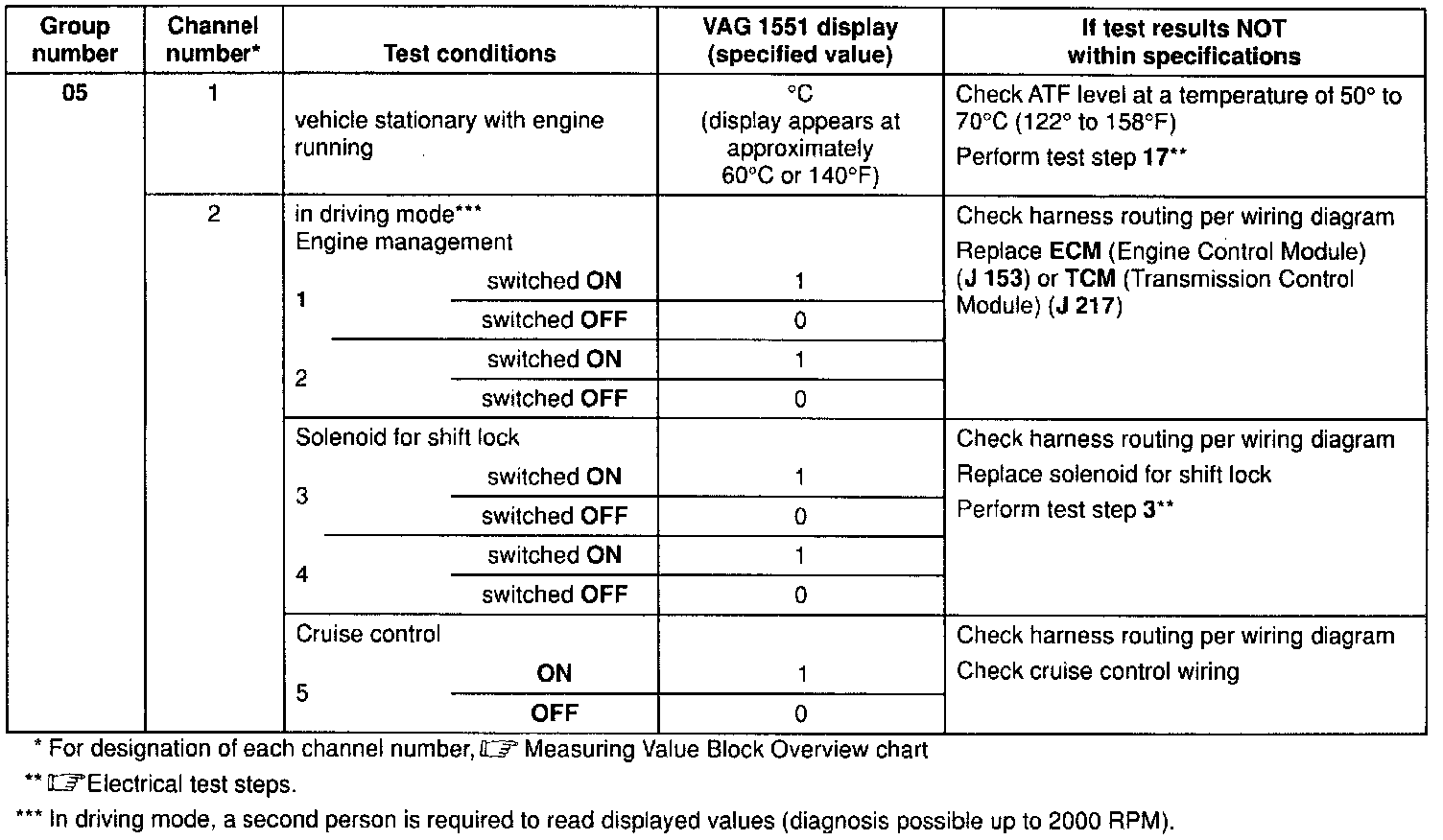

Troubleshooting Chart:
