Removing/Installing

CD changer components, removing/installing 91-40






CD changer components, removing/installing

CD changer unit, removing/installing

^ disconnect eight-point DIN cable connection from rear of CD changer

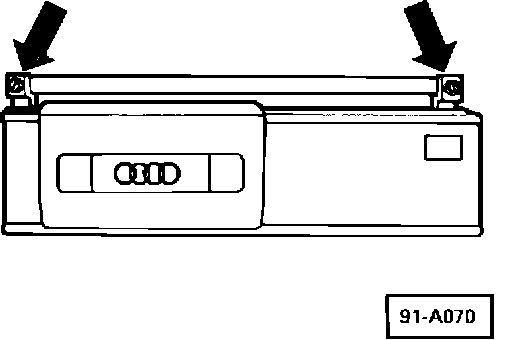

^ remove CD changer mounting screws (arrows)
^ slide CD changer unit off trunk support bracket


^ install in reverse order of removal
^ ensure brackets on CD changer unit properly engage trunk support bracket

CD changer controller, removing/installing

^ obtain radio security code
^ disconnect battery ground strap
^ disconnect airbag power supply connector
^ remove left knee bar securing screws and carefully lower knee bar

Note

The frequency and loudness switches. on the CD changer controller can be changed without completely removing the controller.





^ remove all cable and wire connections from CD changer controller

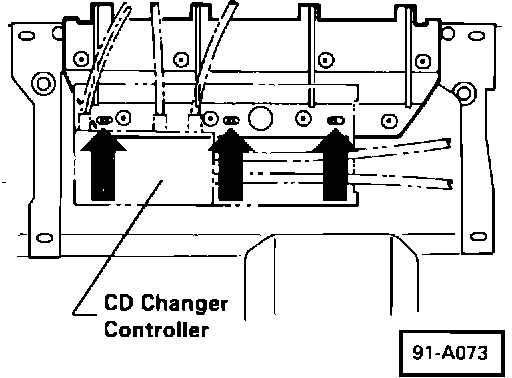

^ remove CD changer controller securing screws (arrows)
^ remove CD changer controller


^ install in reverse order of removal
