Manual Transmission - Reverse Gear Modifications

91audi05

Group: 35

Number: 91-01

Date: July 31, 1991


Subject: 012 5-speed transmission modifications


Model(s): 80/90 with 012 transmission all m.y.





Transmission modifications

Reverse gear

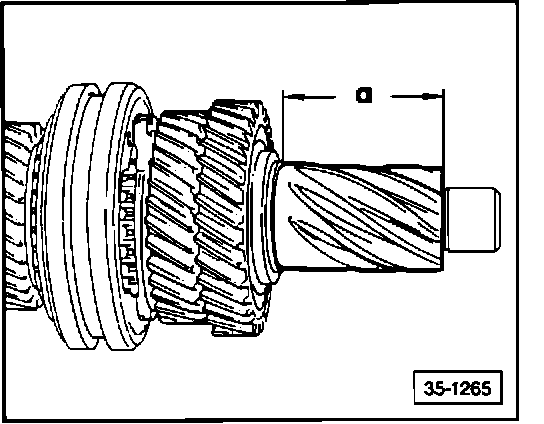

Beginning with transmission date 20 08 0, the reverse gear teeth on the main shaft and those of the reverse gear have been lengthened as follows:

^ dimension a = current: 54.50 mm
New: 56.50 mm

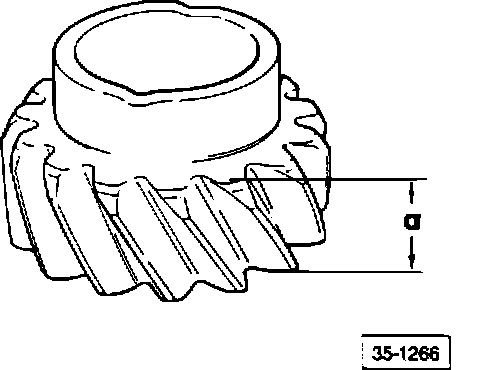

^ dimension a = current: 18.3 mm
New: 19.7 mm

Note

The new mainshaft can be installed in earlier transmissions (before 20 08 0) but the needle bearing must be installed 2.0 mm deeper (see Mainshaft needle bearing installation on this page).





Main shaft needle bearing installation

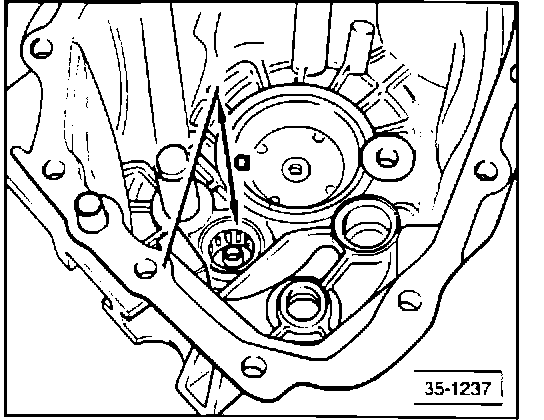

Beginning with transmission date 20 08 0, the main shaft needle bearing in the final drive housing is installed 2.0 mm deeper.

^ dimension a = current: 214 mm
New: 216 mm

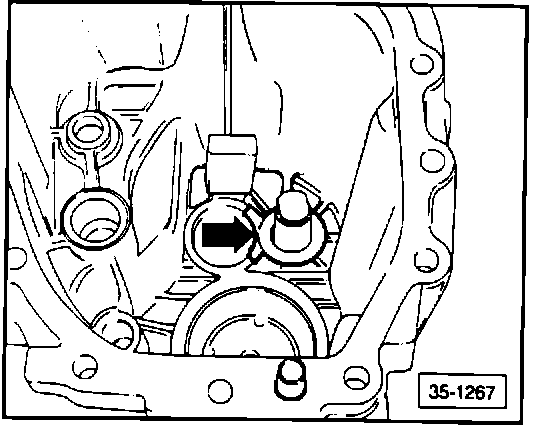

The final drive housing is slightly milled-out in the reverse gear area (arrow).

Note

The new reverse gear can only be installed in transmissions that have the revised housing and main shaft.





Tensioning cable mounting

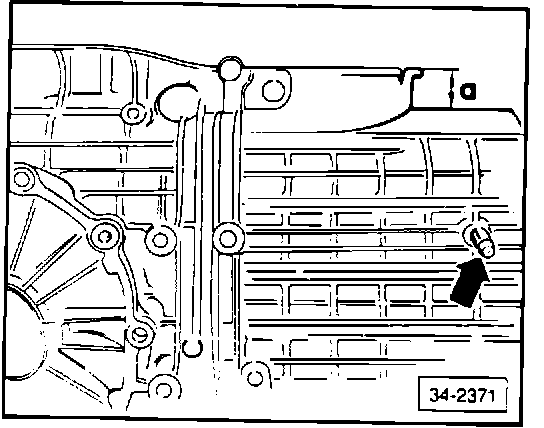

Beginning with transmission date 20 08 0, the tensioning cable mount on the transmission was changed.

^ dimension a = current: 23.5 mm
New: 31.5 mm

Beginning in 9/90 a mounting hole in the housing replaces the previously used mounting stud (arrow). The tensioning cable bracket is then provided with a mounting stud.

Note

Change the cable bracket when installing a new transmission.

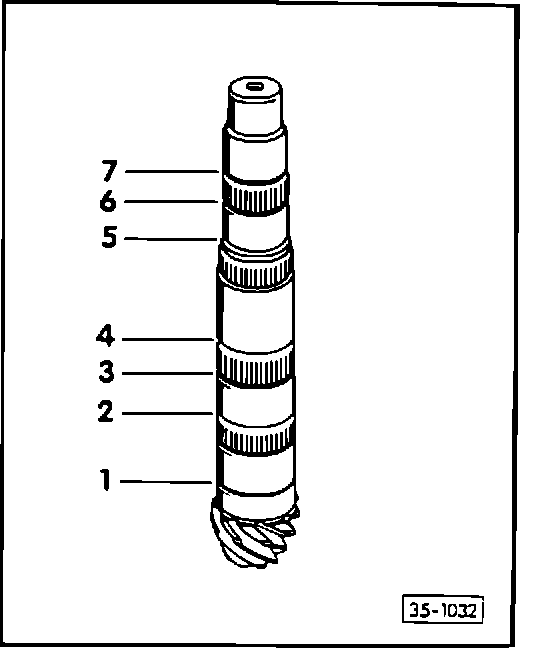

Pinion shaft circlips revised

Beginning with transmission date 03 04 0, the circlip sizes are revised as follows:

Circlip 1

Thickness of circlip
(mm) Part number

2.00 N 902 950.01
2.03 N 902 950.08
2.06 N 902 950.04
2.09 N 902 950.09
2.12 N 902 950.10
2.15 N 902 950.11


Circlip 4

Thickness of circlip
(mm) Part number

1.90 N 902 946.02
1.94 N 902 946.09
1.98 N 902 946.10
2.02 N 902 946.06
2.06 N 902 946.11


Circlip 5

Thickness of circlip
(mm) Part number

1.86 N 902 952,07
1.90 N 902 952.02
1.94 N 902 952.08
1.98 N 902 952.09


Note

The circlips 2, 3,. 6 and 7 remain unchanged.

New circlips can be installed in all current transmissions.

Current circlips will be deleted when supplies are used up.
