Component Layout

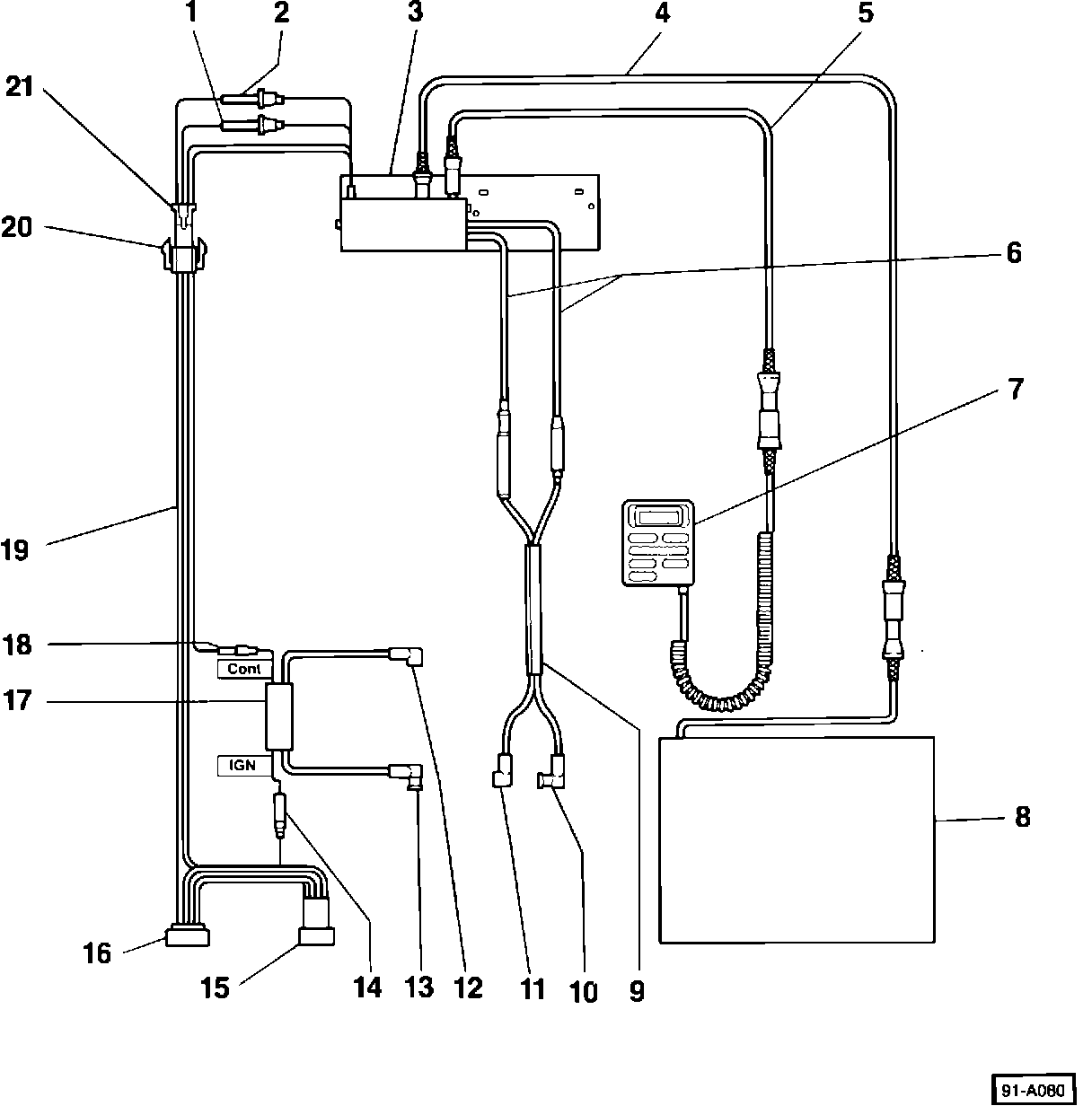

CD changer, component layout 91.38





Electrical System - Radio, Board Computer


Note

For complete wiring information, see Wiring Diagram.

1 - Fuse, 3A

2 - Fuse, 1A

3 - CD changer controller installed on driver's side knee bar

4 - CD changer unit cable DIN, blue

5 - CD remote control cable DIN, black

6 - Antenna cables


7 - CD remote control

8 - CD changer unit
^ six disc capacity
^ installed in trunk

9 - Antenna adaptor cable (assembly)

10 - Rear antenna connector to rear antenna lead

11 - Rear antenna connector connects to radio

12 - Front antenna connector connects to radio


13 - Front antenna connector to front antenna lead

14 - Single-point bullet connector

15 - Radio connector connects to radio connector on car

16 - Radio connector connects to radio

17 - Antenna diversity switch located behind center console, near radio

18 - Single-point bullet connector

19 - Radio Interface wiring harness

20 - Four-point connector, male

21 - Four-point connector, female


CD changer, component layout 91.39
