Instrument Panel
Instrument Panel

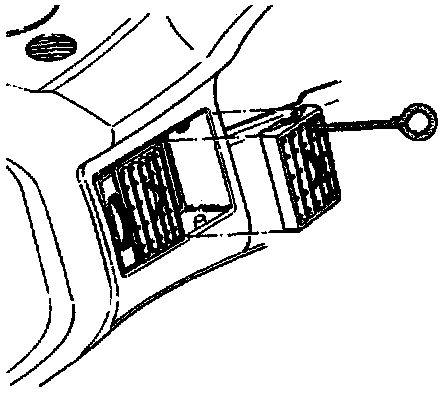

Instrument Panel Air Outlet:
-
Remove air direction vanes with self-made hook.
-
Remove
air duct
.
-
Install air outlet making sure it snaps in.
-
Install air direction vanes with larger tab on top.
