Fresh Air Intake

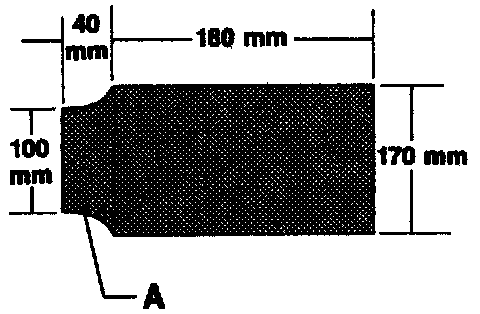

Fresh Air Intake Duct Mesh Dimensions:

NOTE:
- Debris can enter passenger compartment through the fresh air intake duct if the intake duct mesh is missing.
- Clean debris from air intake before installing intake duct mesh.

1. Cut intake duct mesh according to image.
2. Bend section A upward 90°.

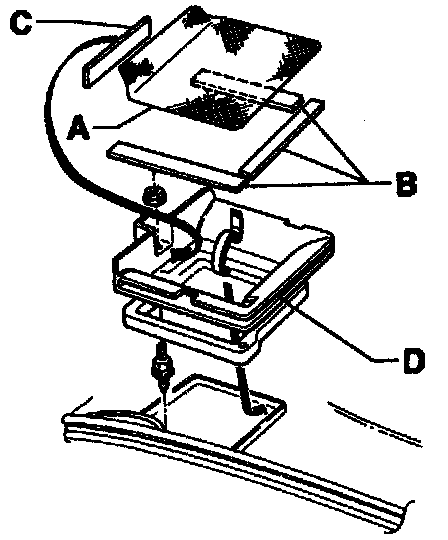

Fresh Air Intake Duct, Sealing Cord:

3. Cut sealing cord to fit bottom of mesh (B and C).
4. Apply sealing cord to intake housing D.
5. Press edge A of intake mesh onto sealing cord first.
6. Press intake mesh onto remaining sealing cord.
