200 Quattro 20V Sedan L5-2226cc 2.22L DOHC Turbo (3B)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Fuel Injection System
Fuel Injection System

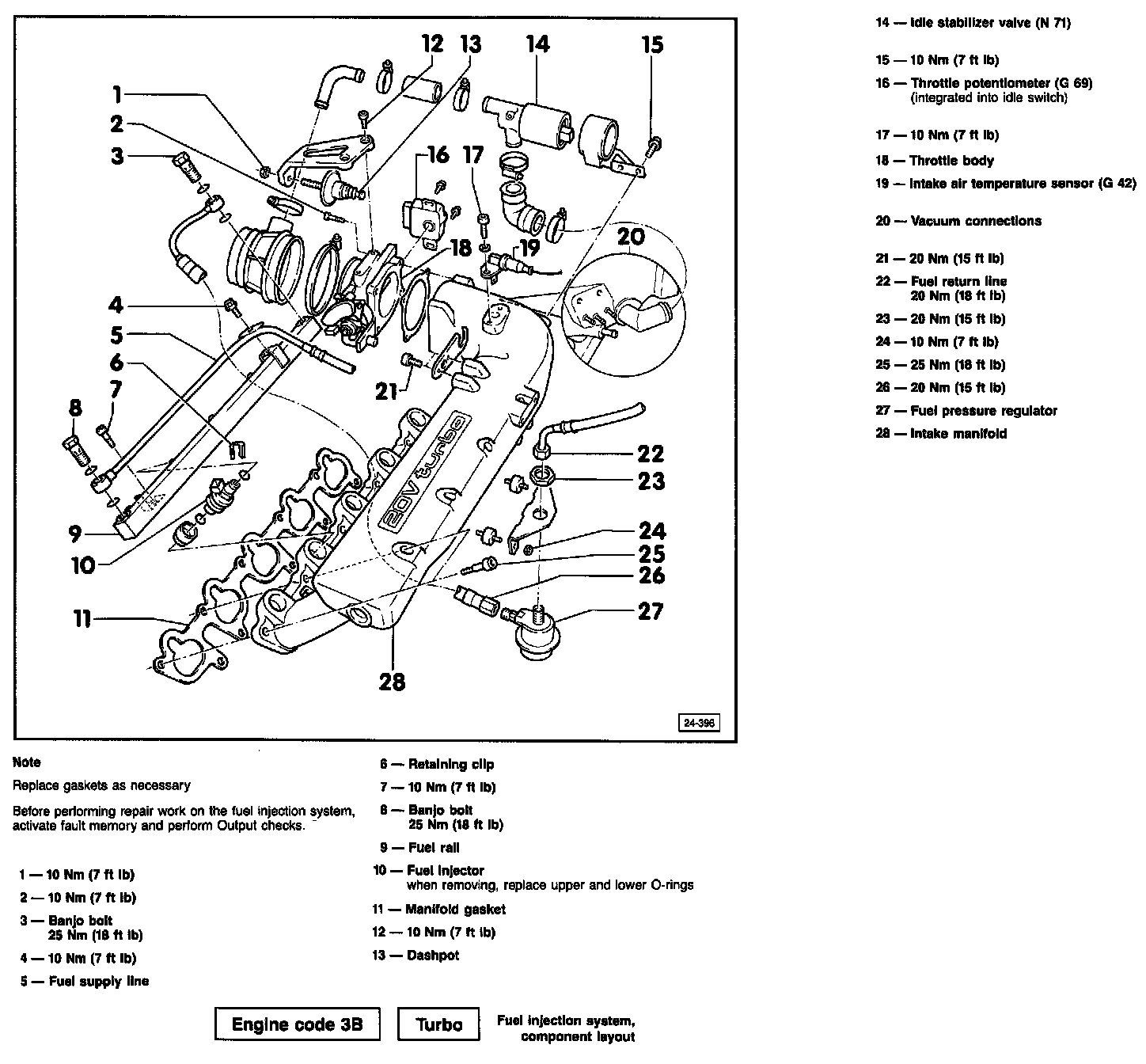

Fuel Rail/Intake Assembly:
