Fuse - Identification Correction

9232audi01

Group: 97

Number: 92-01

Date: 04/08/92


Subject:
Fuse Identification Correction


Model(s):
Audi 200 Ouattro
M.Y. 1991

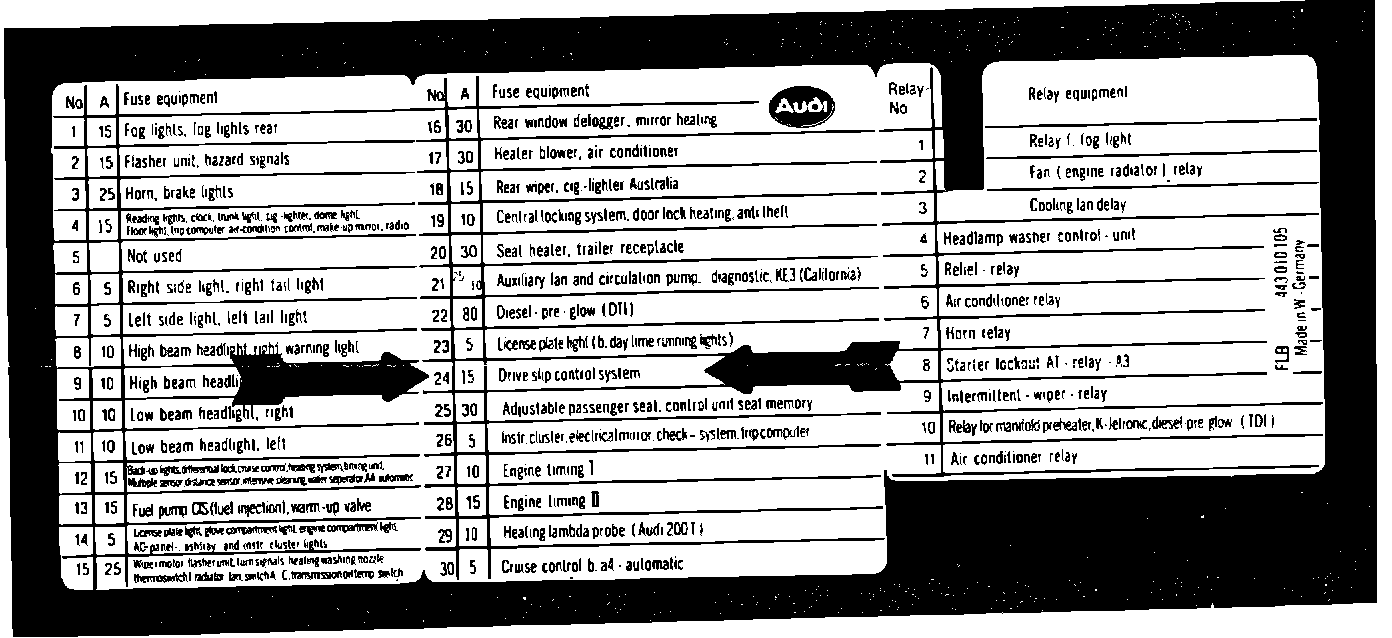

The fuse label installed in some AUDI 200 Quattros is incorrect. Fuse position #24 is designated as Drive Slip Control System. It should be MOTRONIC CONTROL UNIT. Do not remove the 15A fuse which is installed.
