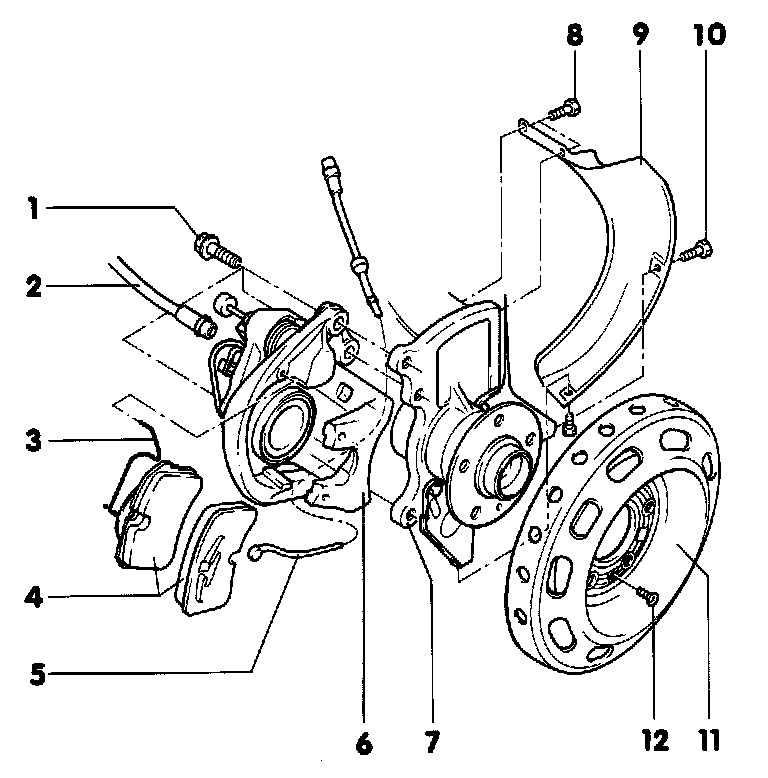

Front Brakes, Servicing

1. 125 Nm (92 ft lb)
Clean ribs before re-using

2. Brake hose
Do not disconnect when replacing brake pads

3. Brake pad retaining spring
Always replace

4. Brake pads
Pad wear warning light comes on when pads are worn
Always replace pads in sets (per axle)
Pad thickness when new: 12.0 mm (0.47 in)

5. Pad weer indicator wiring
Replace if necessary

6. Brake caliper
Can not be repaired a replace if necessary

7. Wheel bearing housing
8. 5 Nm (45 in lb)
9. Cover plate
10. 10 Nm (7 ft lb)

11. Brake disc
Replace discs in pairs (per axle)
Removing and installing, refer to Brake Pads/ Service and Repair Service and Repair
Brake disc diameter 310/312 mm (12 in)
Brake disc thickness 25 mm
Brake disc wear limit 23 mm

12. Locating screw
