Home >> Audi >> 1991 >> 100 Wagon L5-2309cc 2.3L SOHC (NF) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

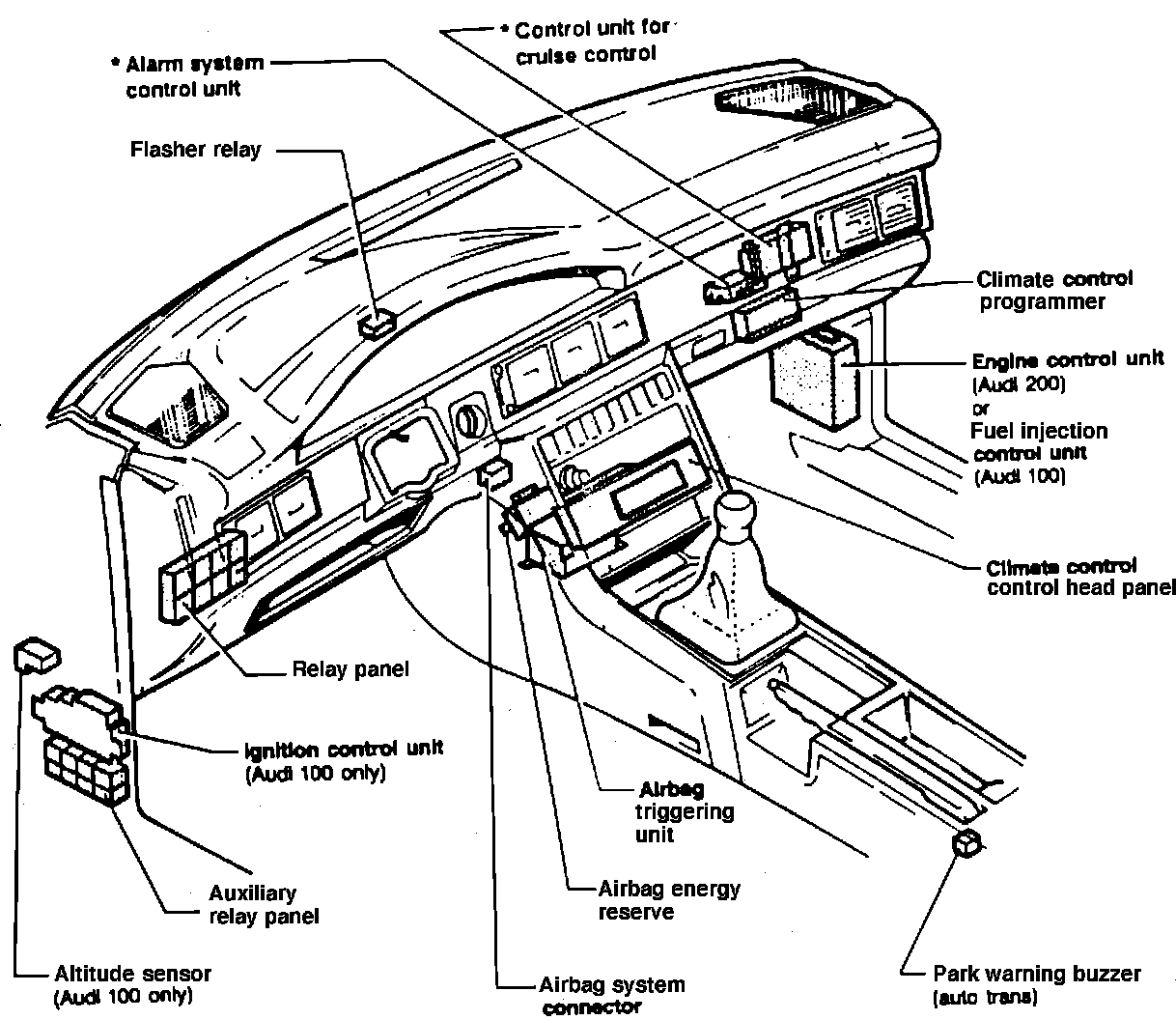

Passenger Compartment Components, Front:
