Fluid - A/T: Testing and Inspection

ATF (automatic transmission fluid), checking/filling

Checking

Note: Always check transmission fluid under the following conditions:
Selector lever in PARK
Engine idling

CAUTION: Vehicle must be on level surface during ATF check. Use only lint-free cloth when wiping dipstick.






Check ATF initially, when engine is cold

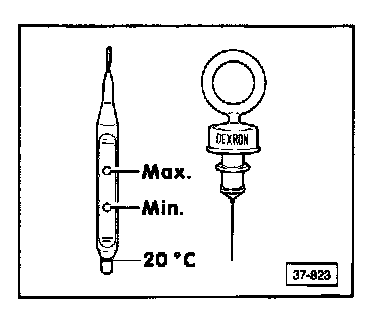

Fluid level must be up to 20°C (68°F) mark
Bring ATF to operating temperature (approximately 60°c or 140°F)
Drive approximately 10 km from a cold start to reach operating temperature
Measure operating temperature using VAG 1551
Check ATF dipstick again. Level must be between Min. and Max. marks
If too high, drain fluid to specifications
If too low, add fluid to specifications

CAUTION: Do NOT overfill transmission with ATF.

Filling

CAUTION: Only use ATF with the designation "DEXRON." Do NOT use lubricant additives. Use only lint free cloth when wiping dipstick.

Remove transmission dipstick and insert funnel into filler tube
Add ATF
During initial filling, add 3 liters
Start engine
Select all lever positions with vehicle stationary
Check ATF level
