Checking
Brake Pressure Regulator, CheckingWork sequence
NOTE: Brake pressure regulator is mounted on body (left rear) and operated by spring attached to rear axle
- depress brake pedal once firmly (car must be on ground)

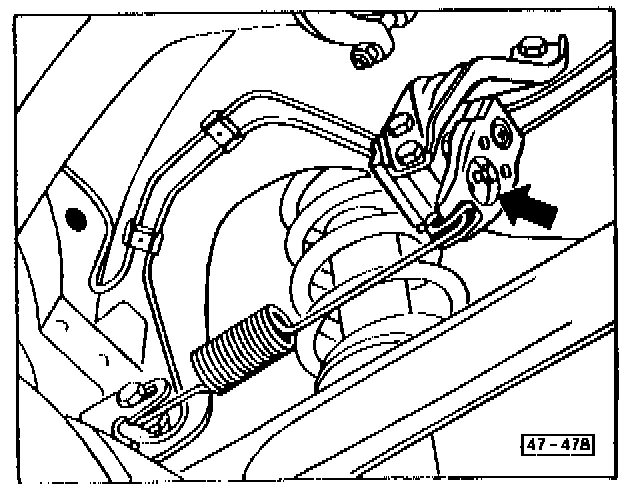

- release pedal suddenly and check that lever (arrow) on pressure regulator moves
NOTE: Brake system must be filled with fluid and free of air (properly bled)
- lift vehicle off ground so that load is taken off rear axle
- press lever of brake pressure regulator toward rear

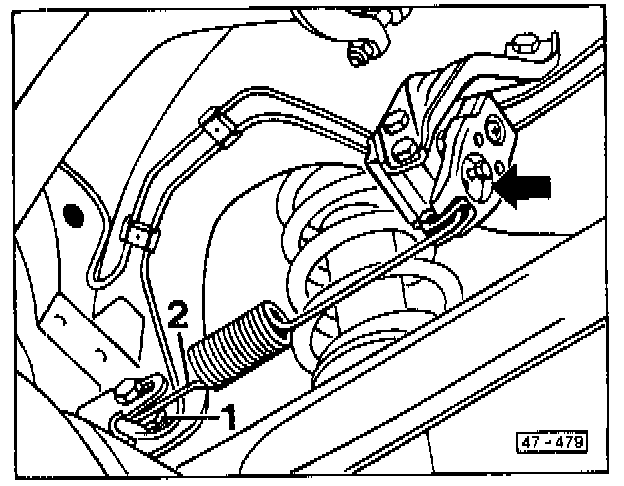

- loosen nut 1
- attach spring 2 without play and without tension to plastic roller
- lighten nut to 25 Nm (18 ft lb)
