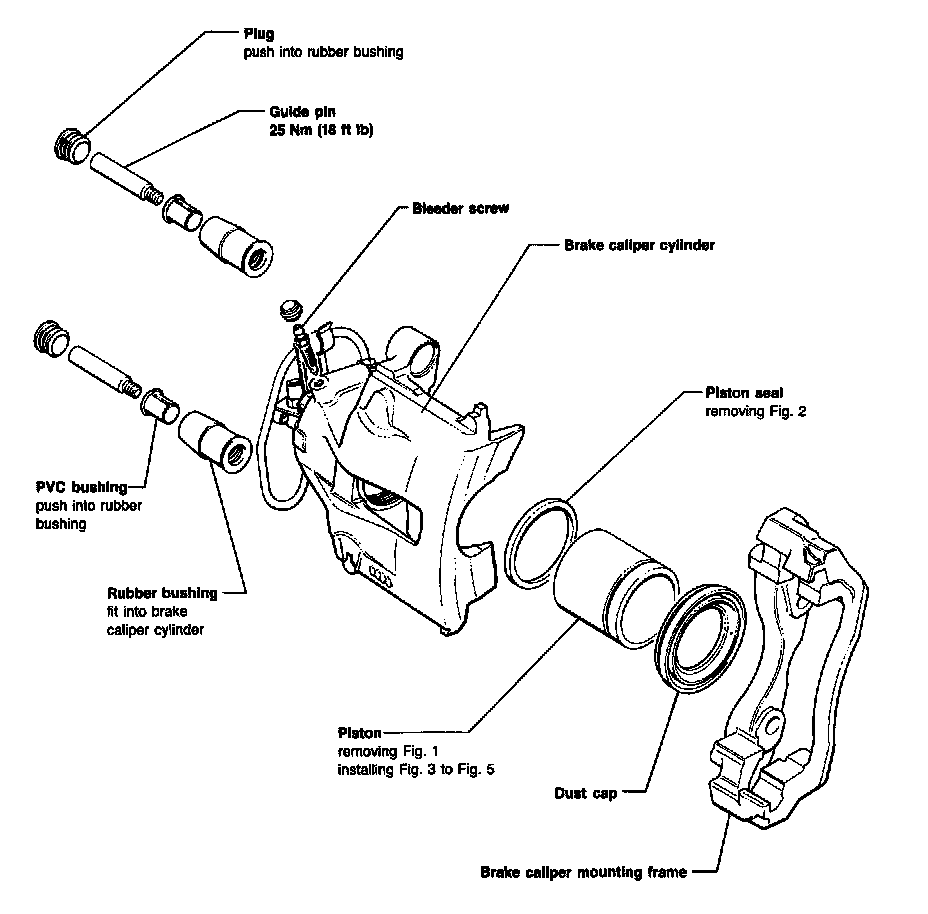

Teves Caliper

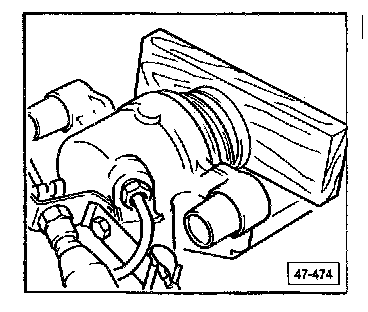

Fig. 1 Piston, removing
Blow Out with compressed air

CAUTION: Place wooden block in cylinder housing to prevent damage to piston. Use only enough air pressure to force piston out. Piston may release suddenly.

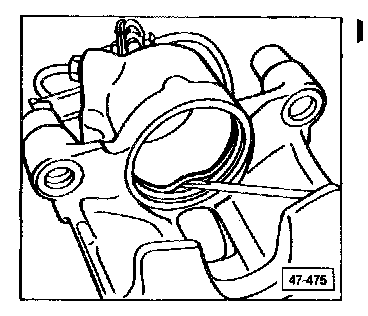

Fig. 2 Piston seal, removing
Pry out carefully without damaging piston bore

Note: If either piston or bore in brake caliper is corroded, pitted or scored, affected part must be replaced.

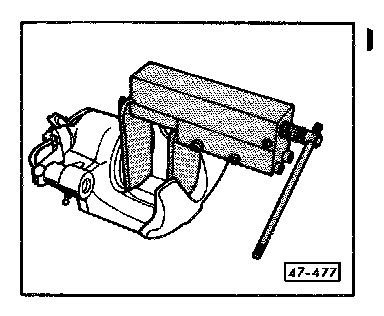

Fig. 3 Piston, installing
Slide dust cap on piston






Fig. 4 Piston, Installing
Lubricate piston and cylinder bore lightly with brake cylinder paste
Install piston and insert inner lip of dust cap into groove in brake cylinder

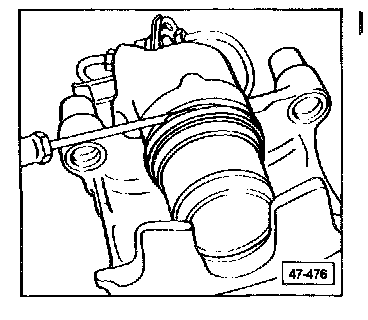

Fig. 5 Piston, installing
Press piston in as far as it will go

CAUTION: Outer lip of dust cap must slip into groove in piston.
