Telephone - Assembly, Repairing, and Troubleshooting: Overview
Group: 91Number: 94-03
Date: March 15, 1994
Subject:
Telephone, assembly/repairing/troubleshooting
Model(s):
100/200 1991 my.
This 100/200 telephone information is revised and supercedes all previously published 100/200 telephone information.
This Technical Bulletin contains information for the Voice Recognition feature, including troubleshooting procedures. In addition, other general telephone information and troubleshooting procedures have been updated to contain the latest information.
This information is formatted for the 100/200 Repair Manual and will be integrated during the next microfiche update.

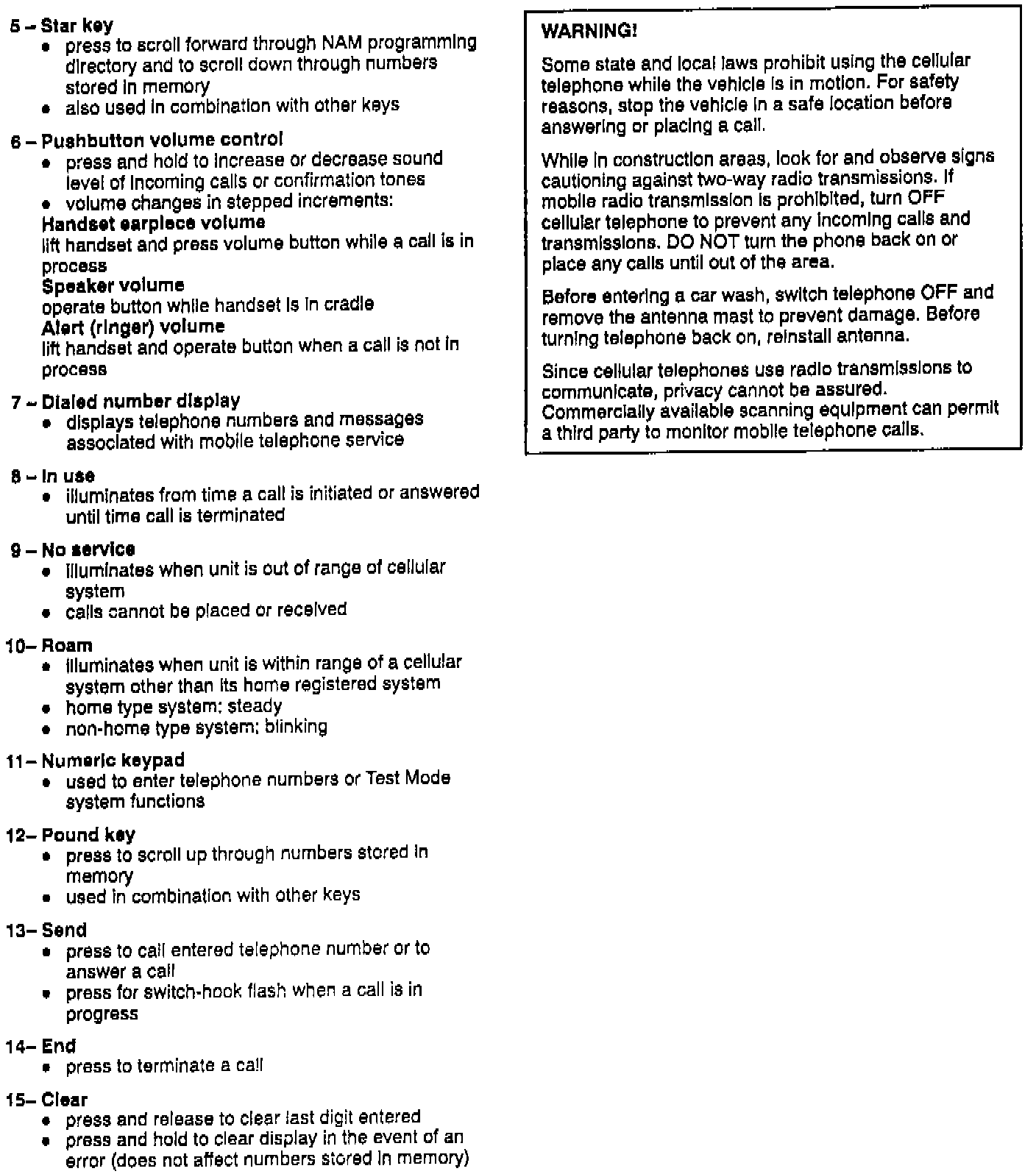

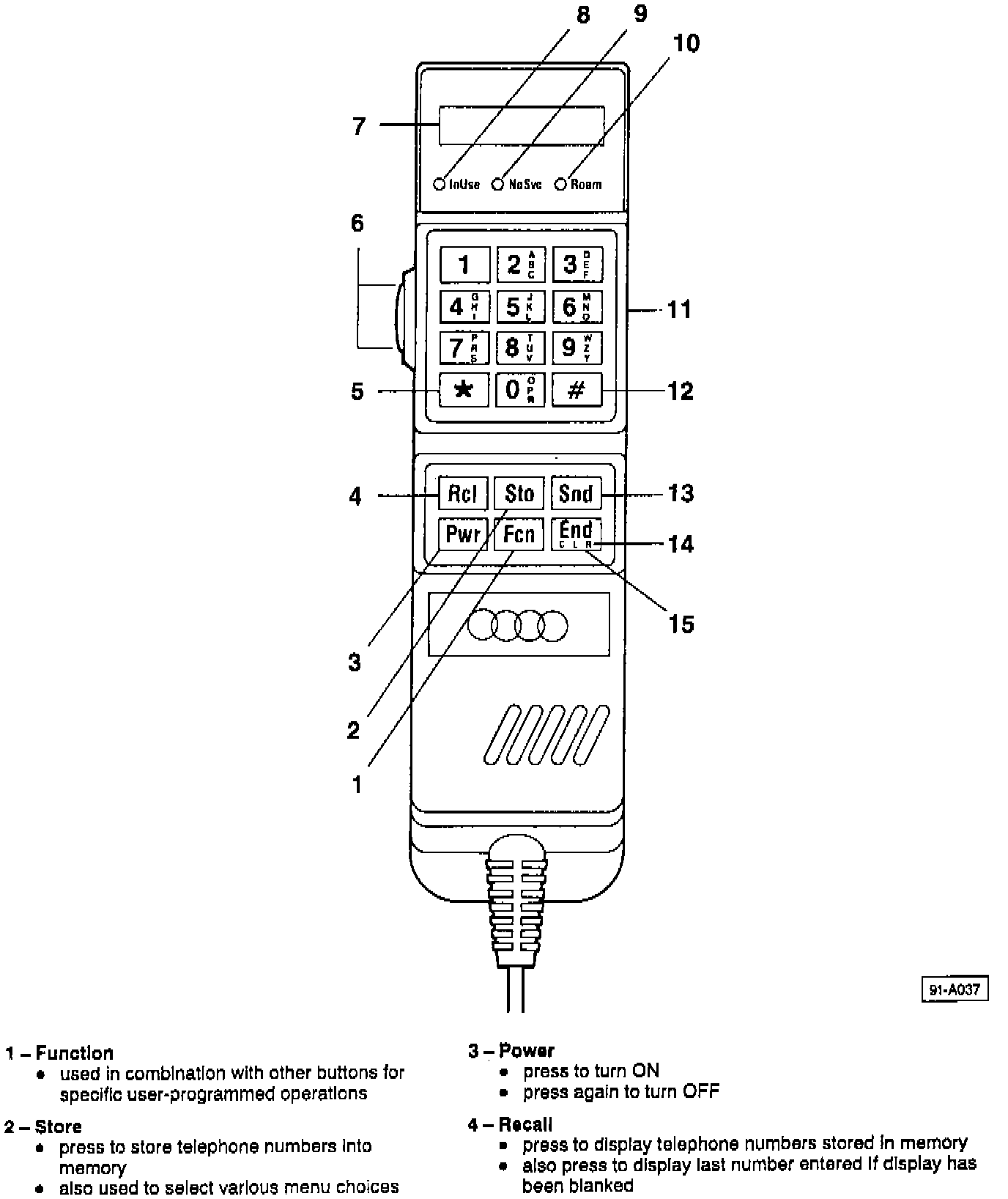

Telephone Functions and Descriptions
Roam characteristics, checking
The roam characteristics of the phone can be changed to allow the type of service provided (non-wireline A1 or wireline b) to be programmed and in what preference.
Complaints of the "NoSvc" light or "Roam" light illuminating constantly can be the result of incorrect or undesirable roam characteristics as follows:
^ turn telephone ON
^ press "Rcl" and "*" buttons
^ current roam selection displayed
Note

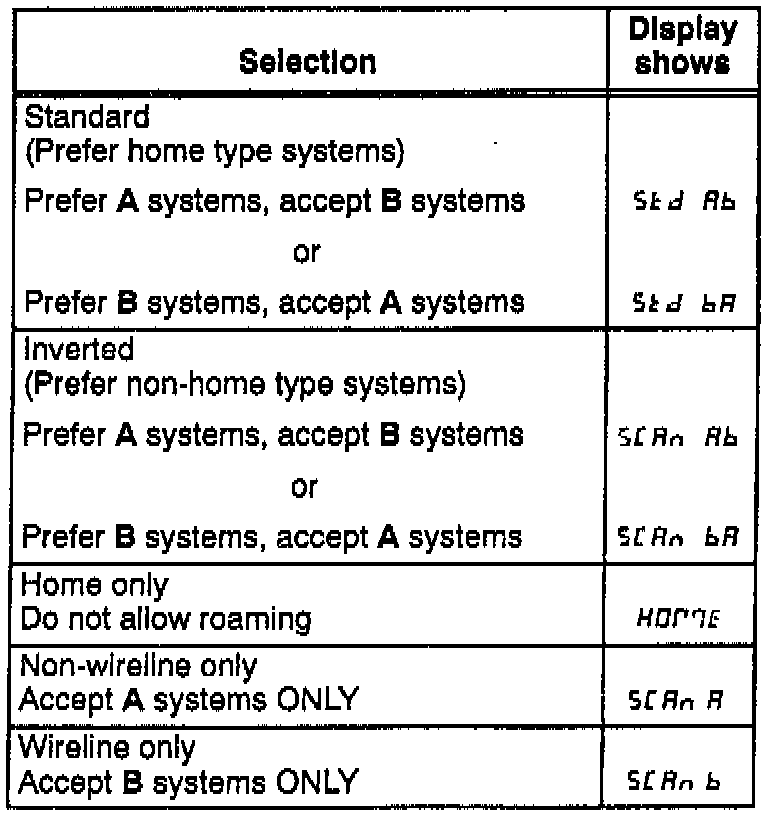

Five roam selections are available: standard (Ab or bA), inverted (bA or Ab), home, non-wireline only, and wireline only.
^ press "*" button repeatedly to advance through the selections
^ press "Sto" button to enter desired choice (Standard)
Note
The best telephone performance is usually obtained with the Standard roam selection setting. Set roam selection to Standard, unless otherwise preferred by customer.

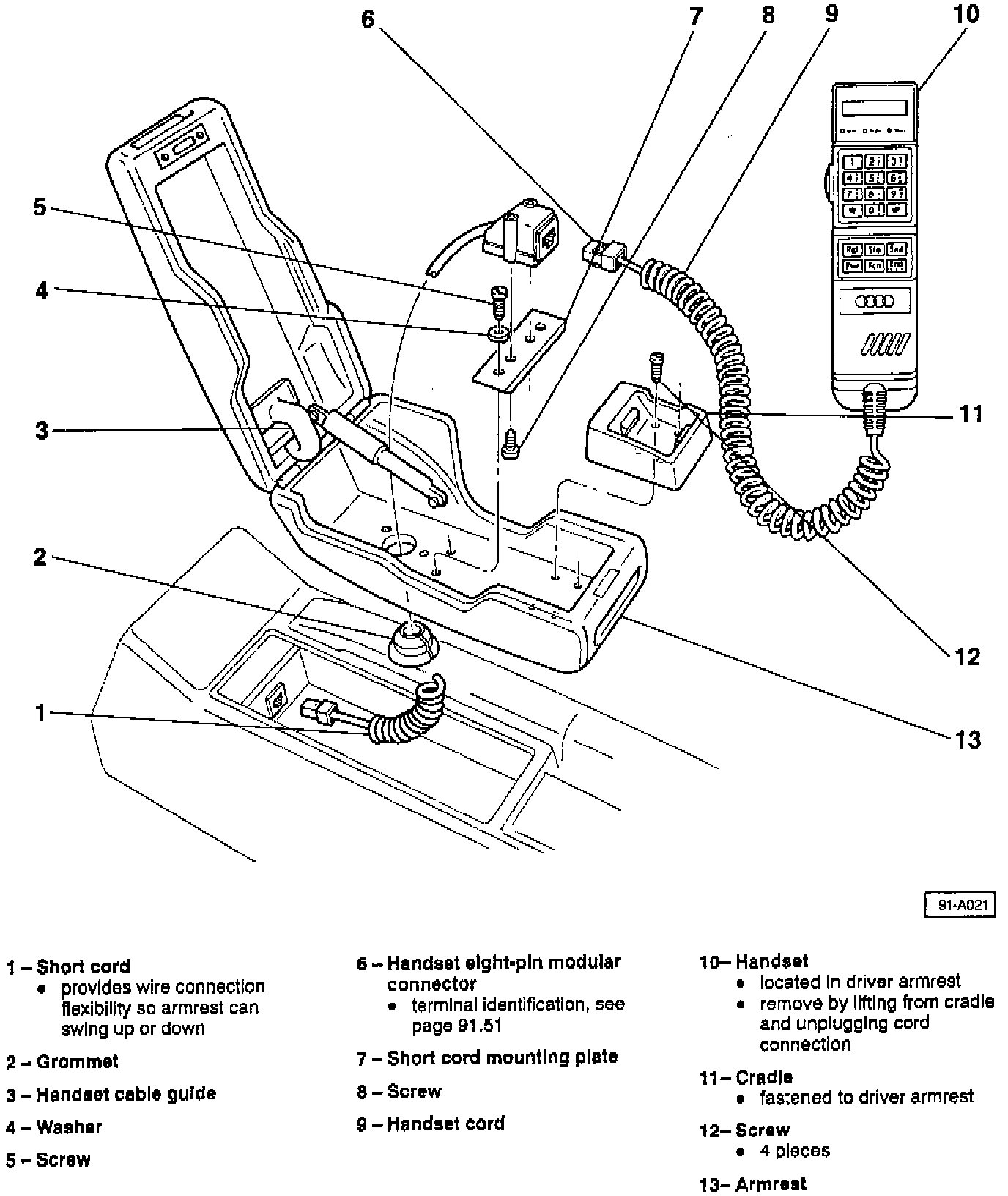

Telephone Assembly
