Teves

Brake pads, removing

Remove front wheels

CAUTION: When re-using brake pads, mark to prevent changing inside to outside or from one caliper to another.

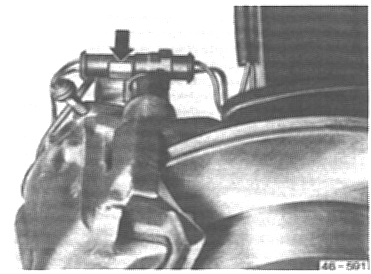

Pull plug connector out of clip (arrow)
Press connector plug on knurled surface and pull apart

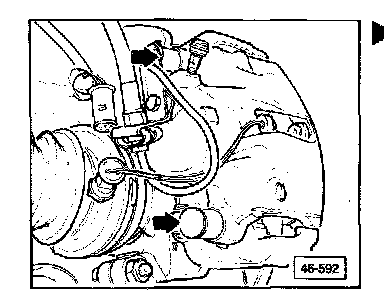

Remove both bolt caps (arrows)

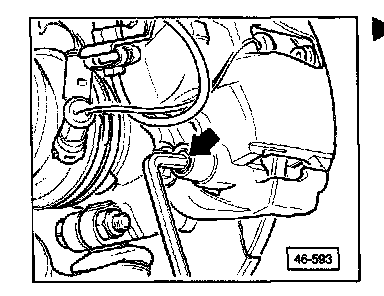

Remove both guide bolts (arrow)
Remove brake caliper housing
Remove brake pads

Front brake pads, installing

CAUTION: Always remove some brake fluid from reservoir before installing new brake pads. When caliper piston is pushed back, fluid is forced out of caliper and into reservoir. After pads are installed, refill reservoir only to MAX mark.

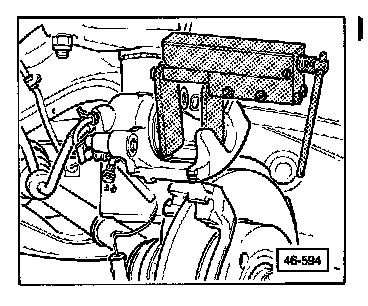

Push piston into caliper housing

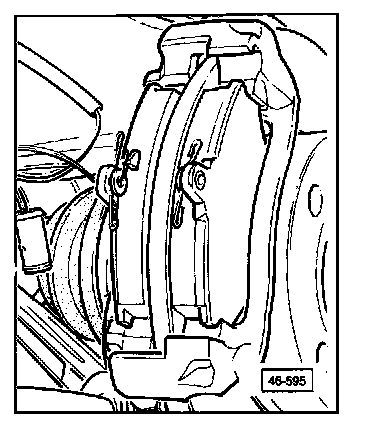

Install brake pads
Tighten brake caliper housing guide bolts to 25 Nm (18 ft lb)
Attach both bolt caps
Reconnect plug connector and attach to retaining clip
With vehicle stationary, depress brake pedal firmly several times to adjust pads to brake disc

Note: Two new self-locking bolts are contained in the repair kit which are not required for the Teves caliper.
