Sunroof Assembly, Disassembling

Sunroof assembly, disassembly




^ remove sunroof assembly

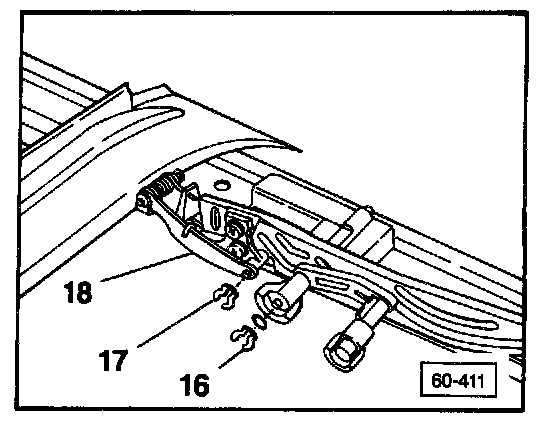

^ remove circlip (17) and pull off lever (18) on both sides
^ remove circlip (16) and O-ring

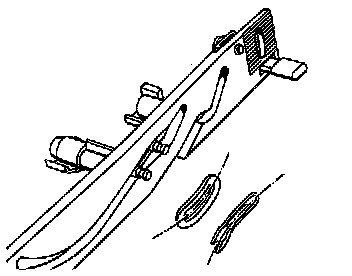

^ remove guide plate/tilt bracket

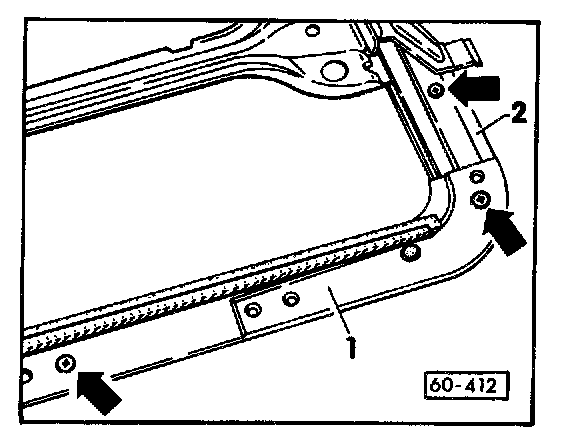

^ remove screws (arrows) and remove front rail cover
^ pull sunroof support forward and out of guide rails

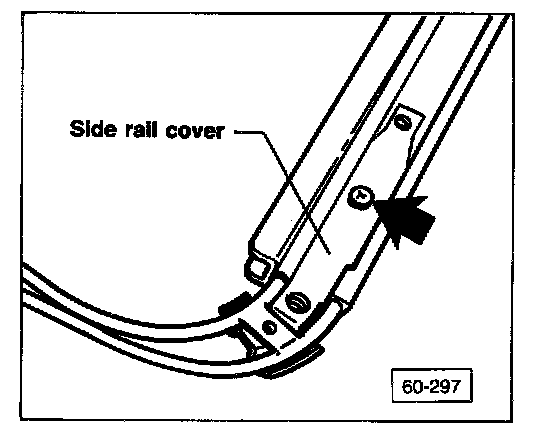

^ remove side rail cover screw (arrow) from both sides
^ remove side rail covers

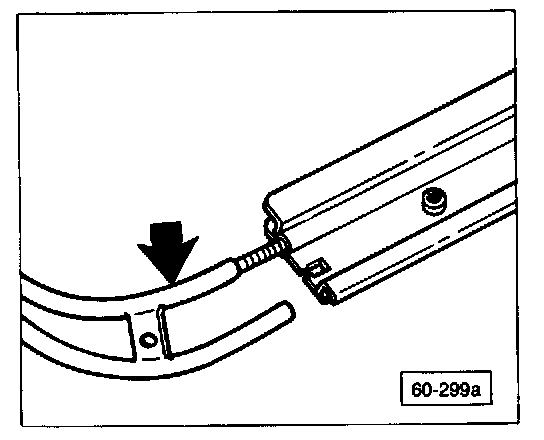

^ remove cable guide tubes (arrow) from guide rail




^ remove cable guide tubes from cable guide support

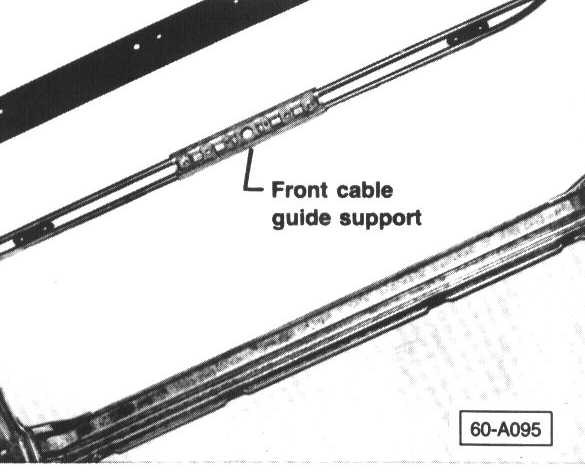

CAUTION! Check front cable guide support for broken metal clip. Replace clip if necessary. Clean all cable guide tubes, tracks and rails before reassembling.




^ remove sunroof lid and retainer from guide plate/tilt bracket.
