Special Tool Package - For Vehicle Service
Tools - Equipment August 17, 1987Subject:
1988 Audi 80/90 Special Tool Package Automatic Shipment AT-090, Minimum Requirement
Number
87-01
To properly service the 1988 Audi 80/90, additional special tools are required. A breakdovn of these tools is listed on the attachment along with price and application information.
Every participating dealer in the Automatic Supply Program will be shipped one tool package, freight prepaid. Shipments are anticipated to commence the week of September 21, 1987, and conclude the week of September 28, 1987.
Should you decide not to receive these tools by automatic shipment, please notify your Regional/Distributor service department before September 15, 1987.
If you do not participate in the Automatic Supply program or if you wish to order additional tool packages, please notify your Regional/Distributor Service department by September 15, 1987. Individual pieces of the package may be ordered via teleprocessing after the automatic shipment takes place.
AUDI SPECIAL TOOL PACKAGE - AT-090
Tool No. Description

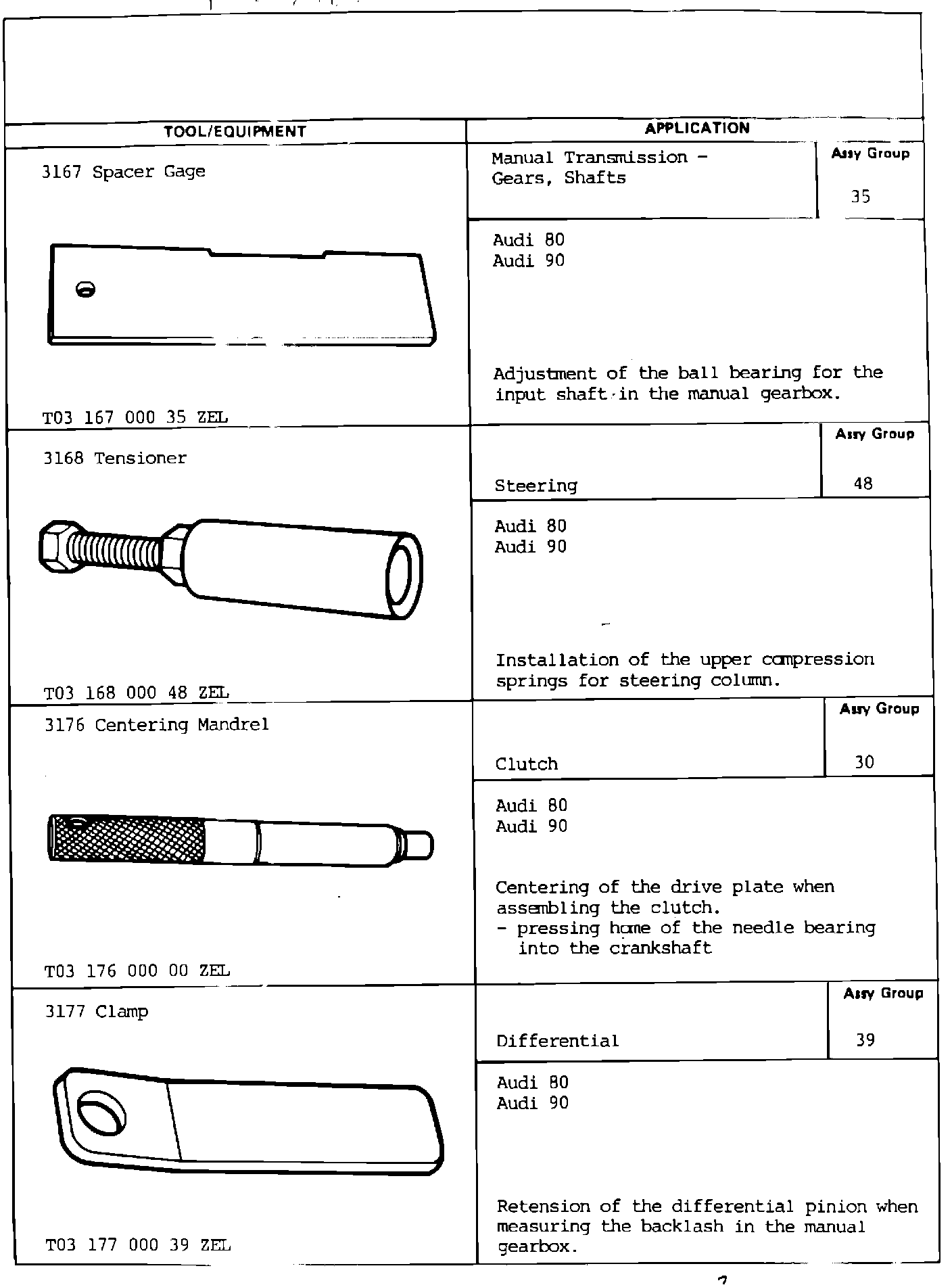

3167 Spacer Gage
3168 Tensioner
3176 Centering Mandrel
317 7 clamp

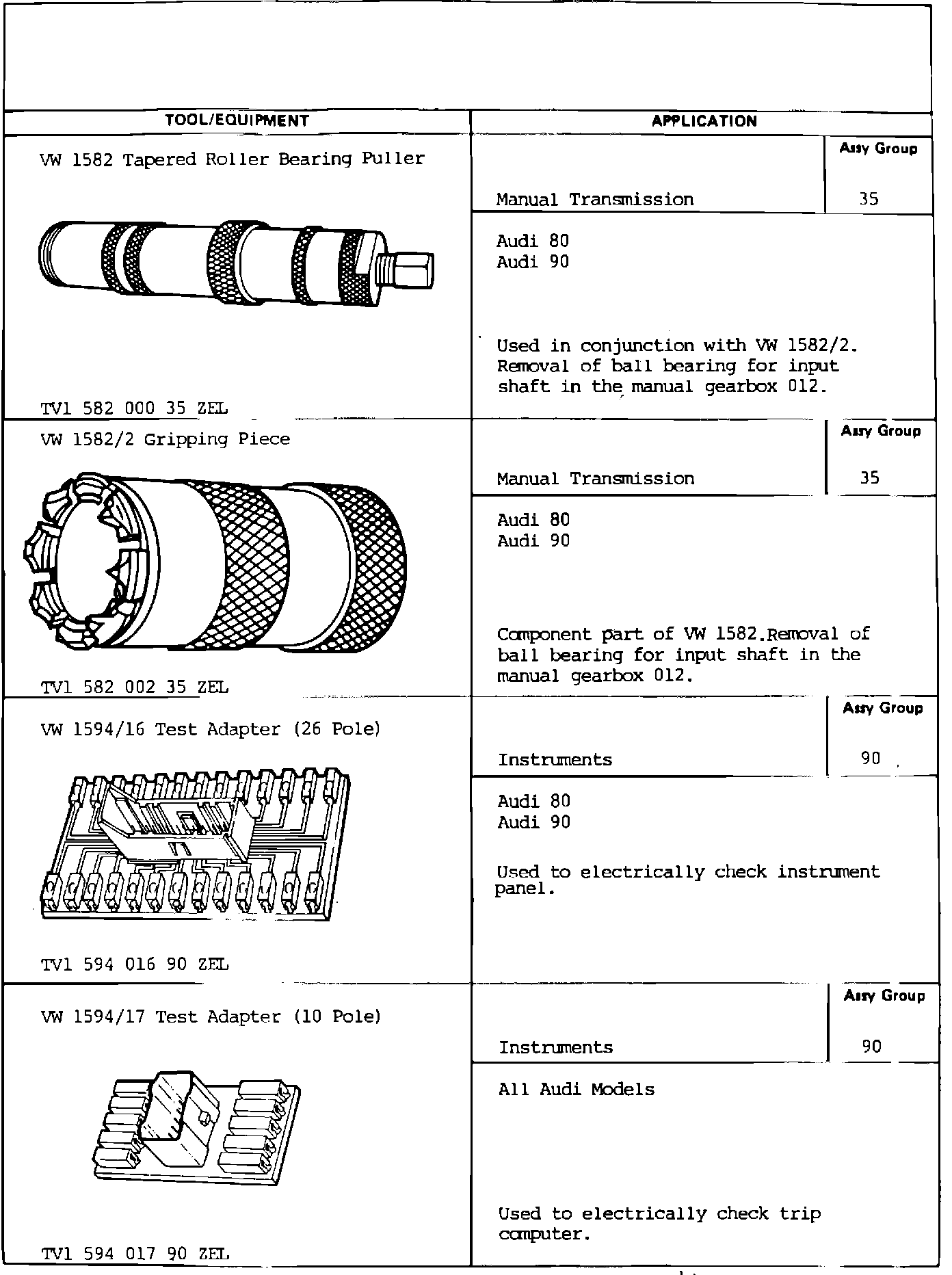

VW 1582 Tapered Roller Bearing Puller
VW 1582/2 Gripping Piece
VW 1594/16 Test Adapter (26 Pole)
VW 1594/17 Test Adapter (10 Pole)

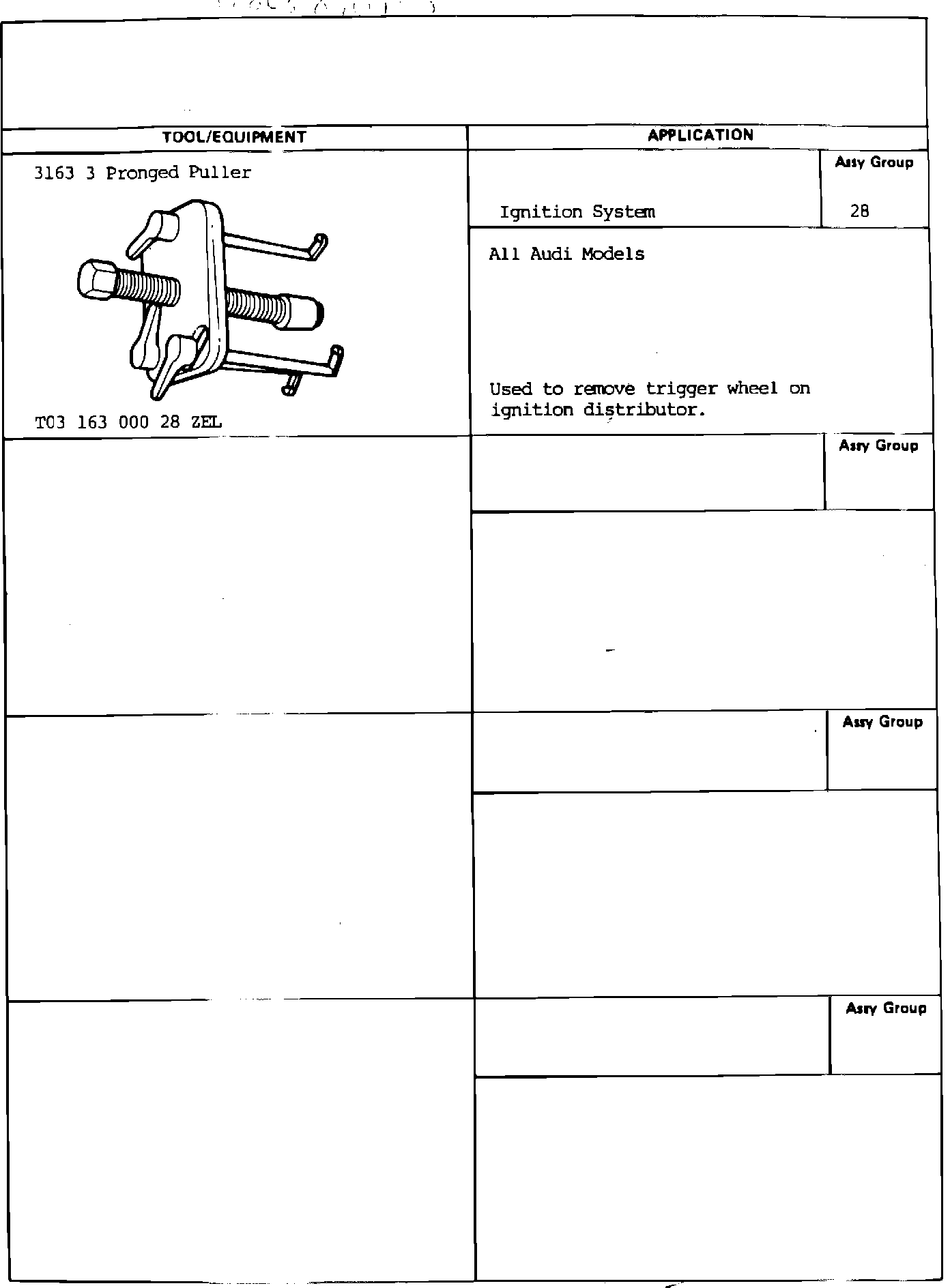

3163 3 Pronged Puller
Package
Quantity Franchise Type Dealer Price
9 Tools Audi $372.10
AUDI SPECIAL TOOL PACKAGE
If you require additional tools or wish to order the tools after the automatic shipment, the teleprocessing information and pricing is as follows:
ORDERING INFORMATION Dealer
Tool No. Description Order Number Price
3167 Spacer Gage T03 167 000 35 ZEL $ 25.80
3168 Tensioner T03 168 000 48 ZEL $ 25.80
3176 Centering Mandrel T03 176 000 00 ZEL $ 14.70
3177 Clamp T03 177 000 39 ZEL $ 6.80
VW 1582 Tapered Roller Bearing Puller TV1 582 000 35 ZEL $ 57.30
VW 1582/2 Gripping Piece TV1 582 0O2 35 ZEL $107.00
VW 1594/16 Test Adapter (26 Pole) TV1 594 016 90 ZEL $ 57.90
VW 1594/17 Test Adapter (10 Pole) TV1 594 017 90 ZEL $ 35.80
3163 3 Pronged Puller T03 163 000 28 ZEL $ 77.20
