Main Wiring Diagram - Including Canadanian Models
>>
Ignition System

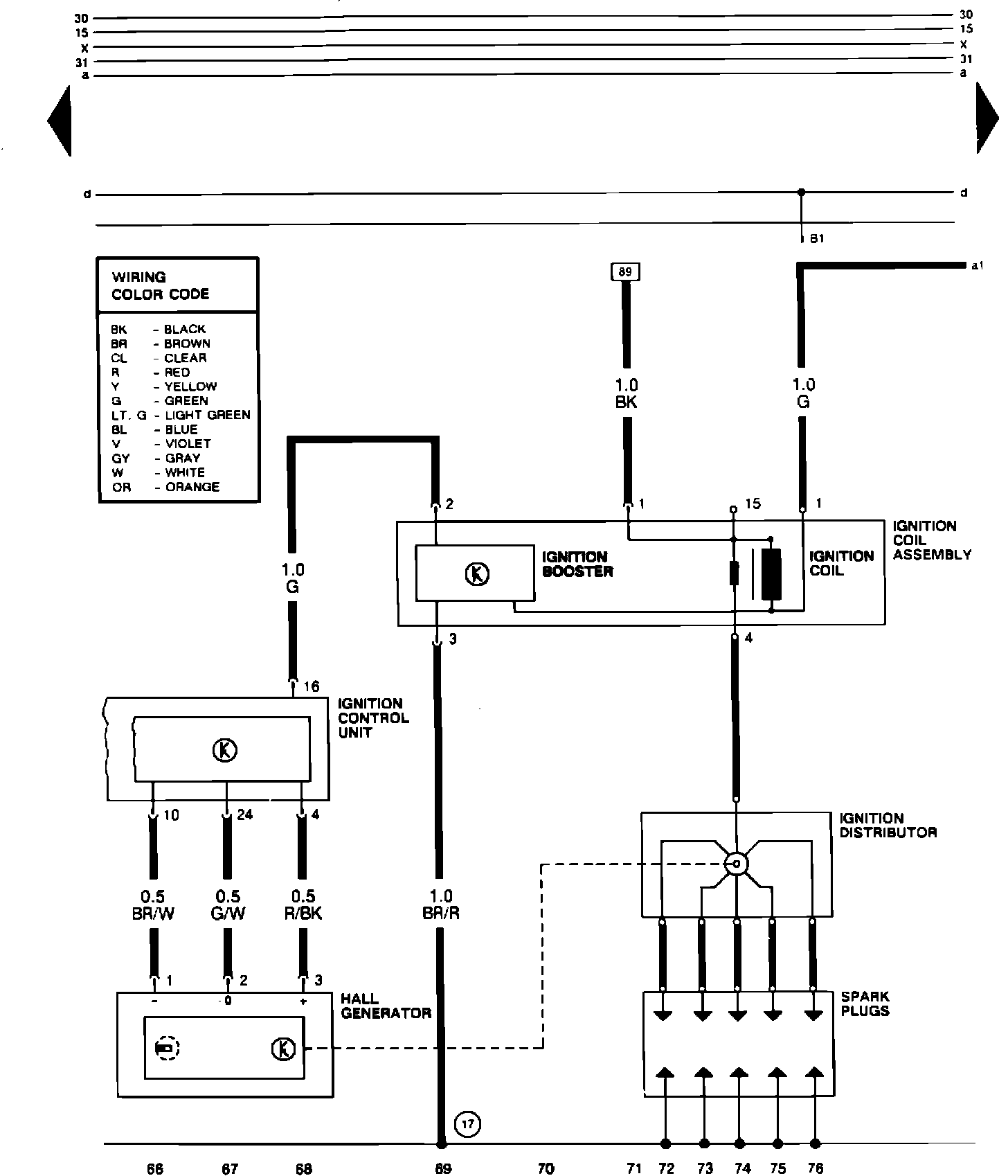

Ignition System

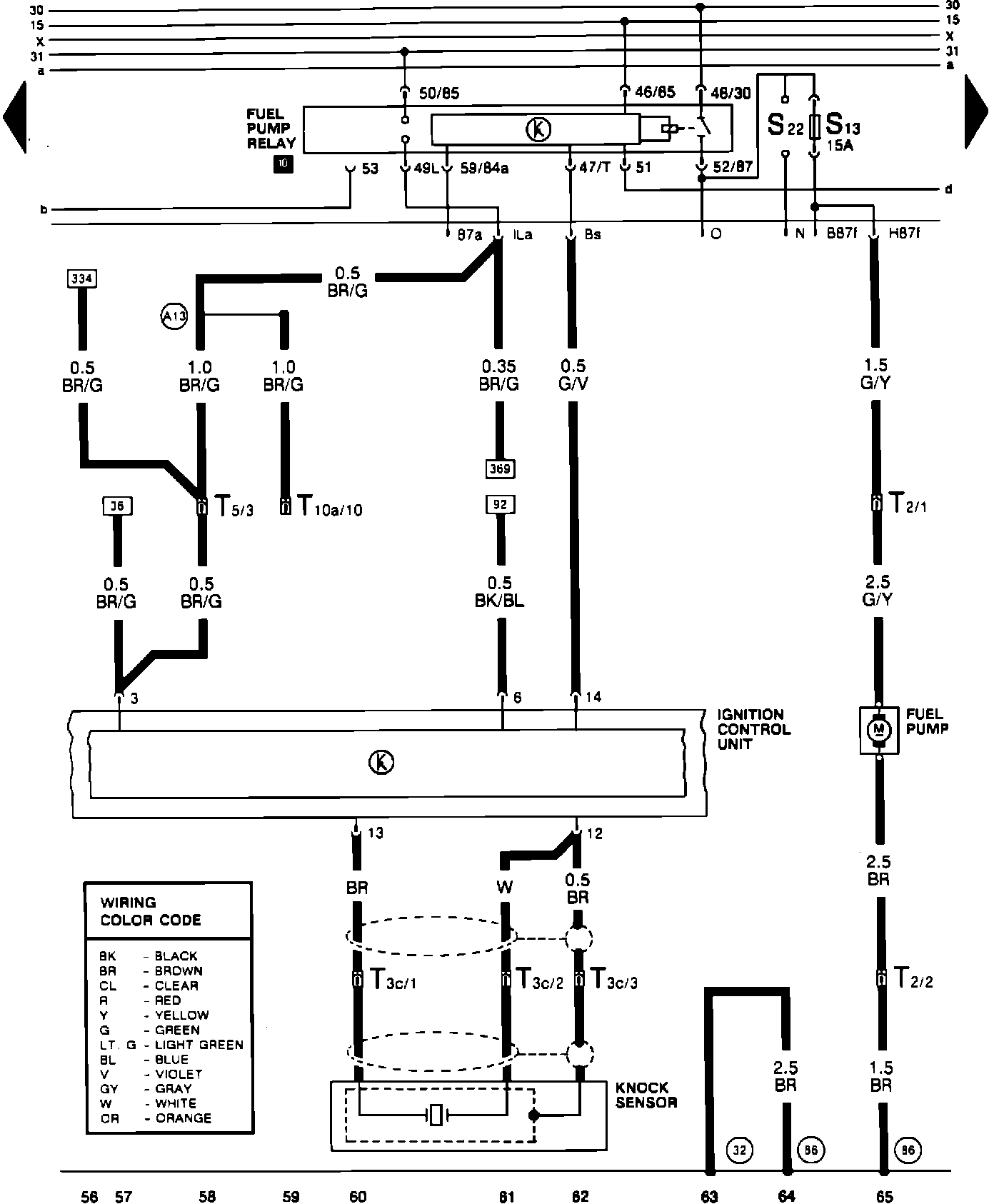

Ignition System Fuel Pump

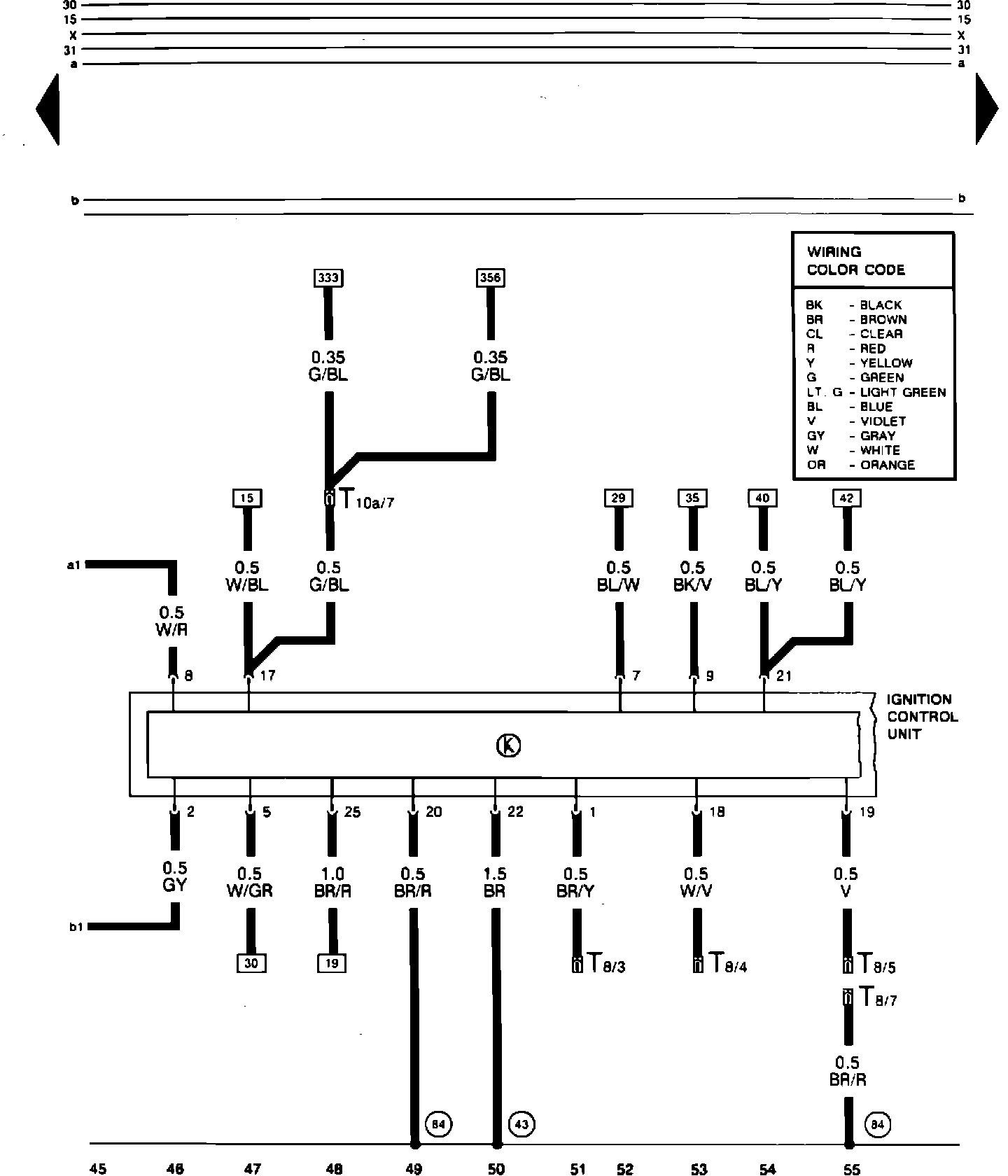

Ignition System
