Main Wiring Diagram - Including Canadanian Models
>>

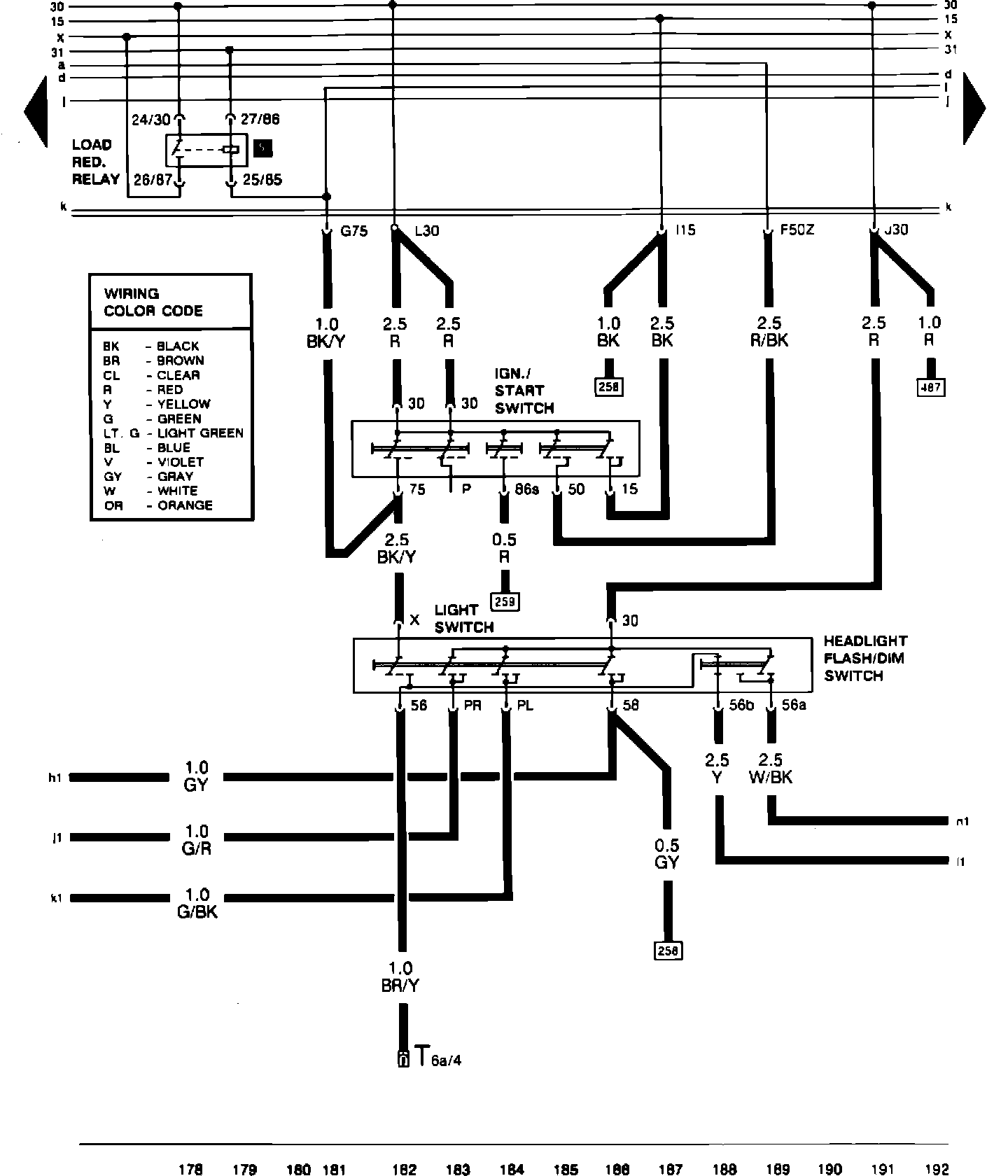

Ignition Switch/ Light Switch
Ignition Switch/ Light Switch
