Fuse/Relay Panel

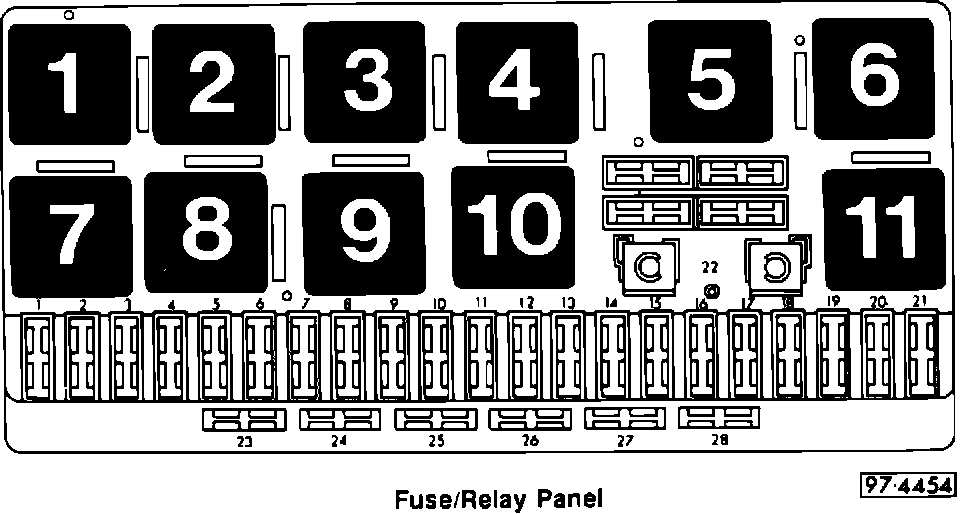

FUSE/RELAY PANEL:

Fuse arrangement
according to the numbers on fuse panel from left to

right: Amp.

1 Fog lights 15
2 Emergency flash switch 15
3 Horns, brake light switch 25
4 Luggage comp. light.
cigar lighter, interior lights 15
5 Radiator coolant fan 30
6 Taillights, side marker light, right 5
7 Taillights, side marker light, left 5
8 Headlight, hi beam, right 10
9 Headlight, hi beam. left 10
10 Headlight, lo beam, right 10
11 Headlight, lo beam, left 10
12 Automatic transmission, back-up
lights, interior lights 15
13 Fuel pump 15
14 License plate lights, glove box light,
engine comp. light, center console 5
15 Wiper/washers 25
16 Rear defogger 30
17 Blower motor, air conditioning 30
18 Power mirrors 5
Amp.

19 Central locking system, ignition
injection control unit 10
20 Radiator coolant fan, blower switch 30
21 Open 22 Open 23 Open
25 Heated seats 30
26 Open 27 Open
28 Ignition injection control unit 15

Relay location on Fuse/Relay Panel [1] - Fog light relay [2] - Rad coolant fan high speed relay [3] - Upshift control unit [4] - Open [5] - Load reduction relay [6] - A/C relay [7] - Horn relay [8] - Auto-trans. relay [9] - Wash/wipe intermit. relay [10] - Fuel pump relay [11] - Rad. coolant fan low speed relay

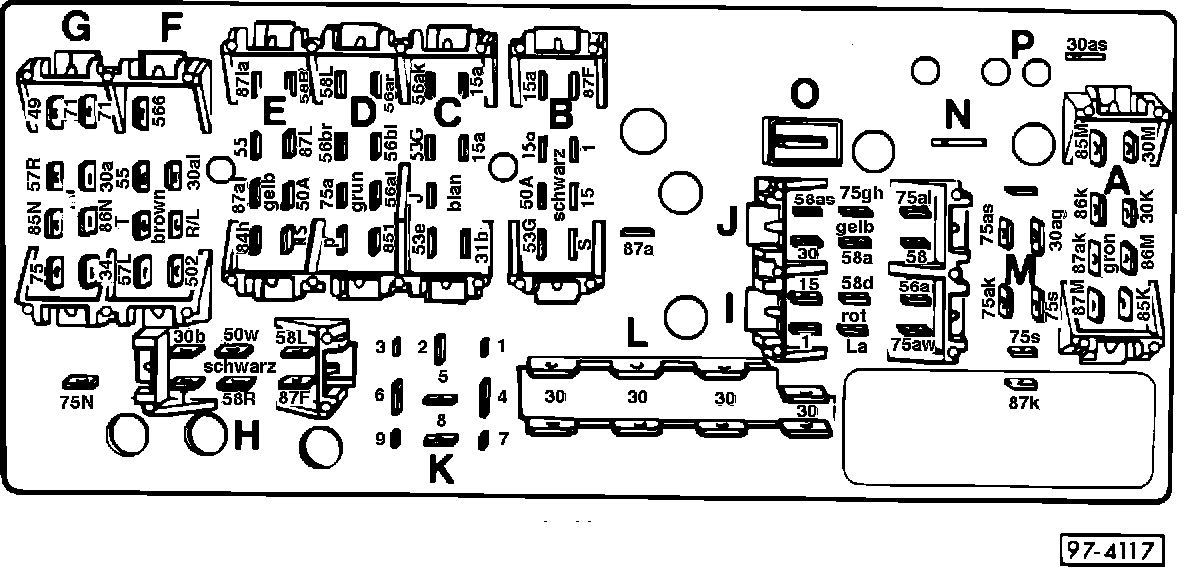

Fuse/Relay Panel, Rear View



A - Air conditioning connector color: gray B - Right front wiring harness connector color: black
C - Instrument panel connector color: blue
D - Left front wiring harness connector color:
green
E - Left front wiring harness connector color:
yellow
F - Instrument panel connector color:
brown
G - Instrument panel connector color: red
H - Rear wiring harness connector color:
black
I - Instrument panel connector color: red
J - Instrument panel connector color: yellow
K - Connected to relay 3 connector color:
black
L - Single connector (terminal 30) connector
color: colorless
M - For optional equipment connector color:
colorless
N - not used
O - not used
P - To fuse 20
