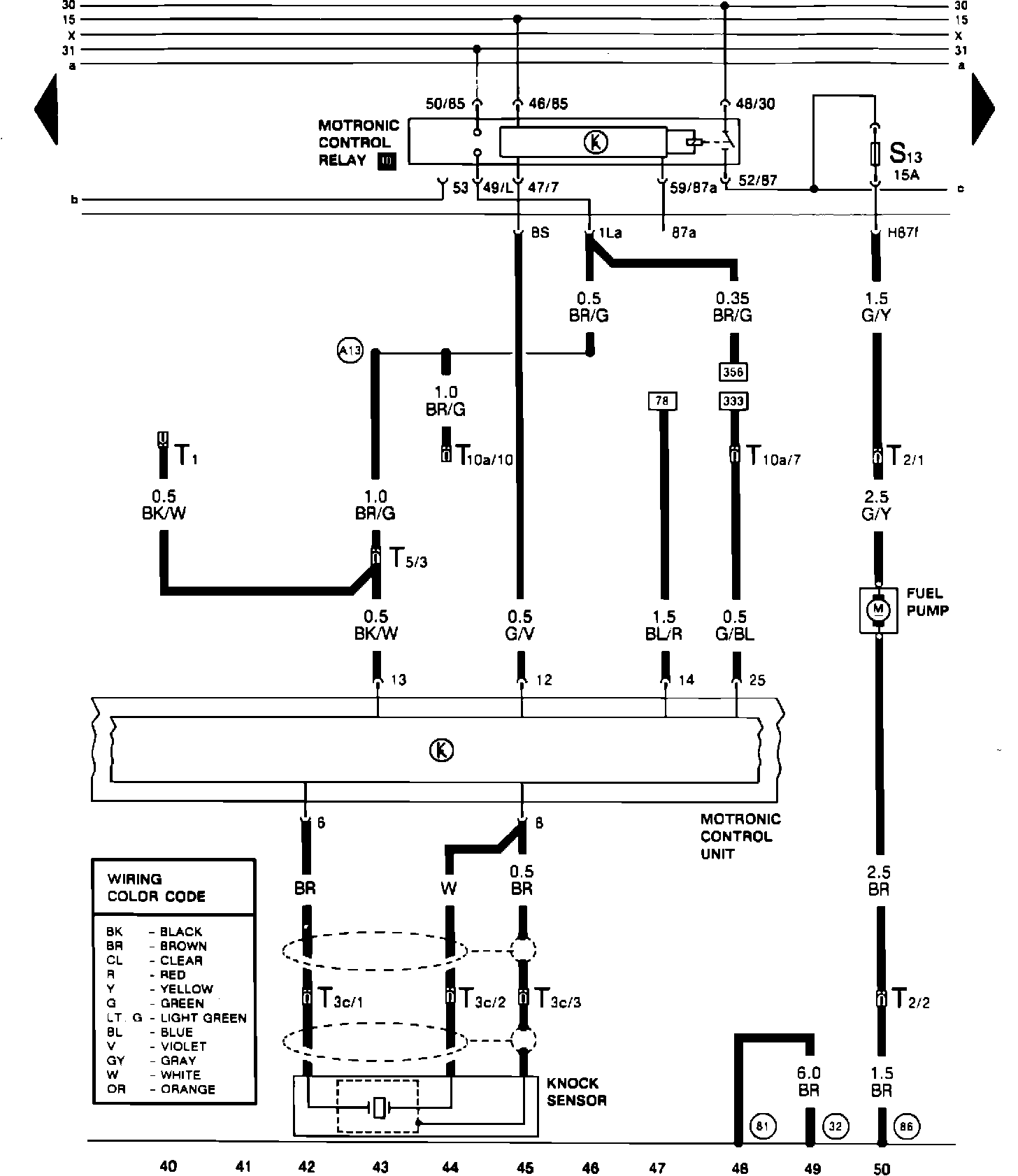

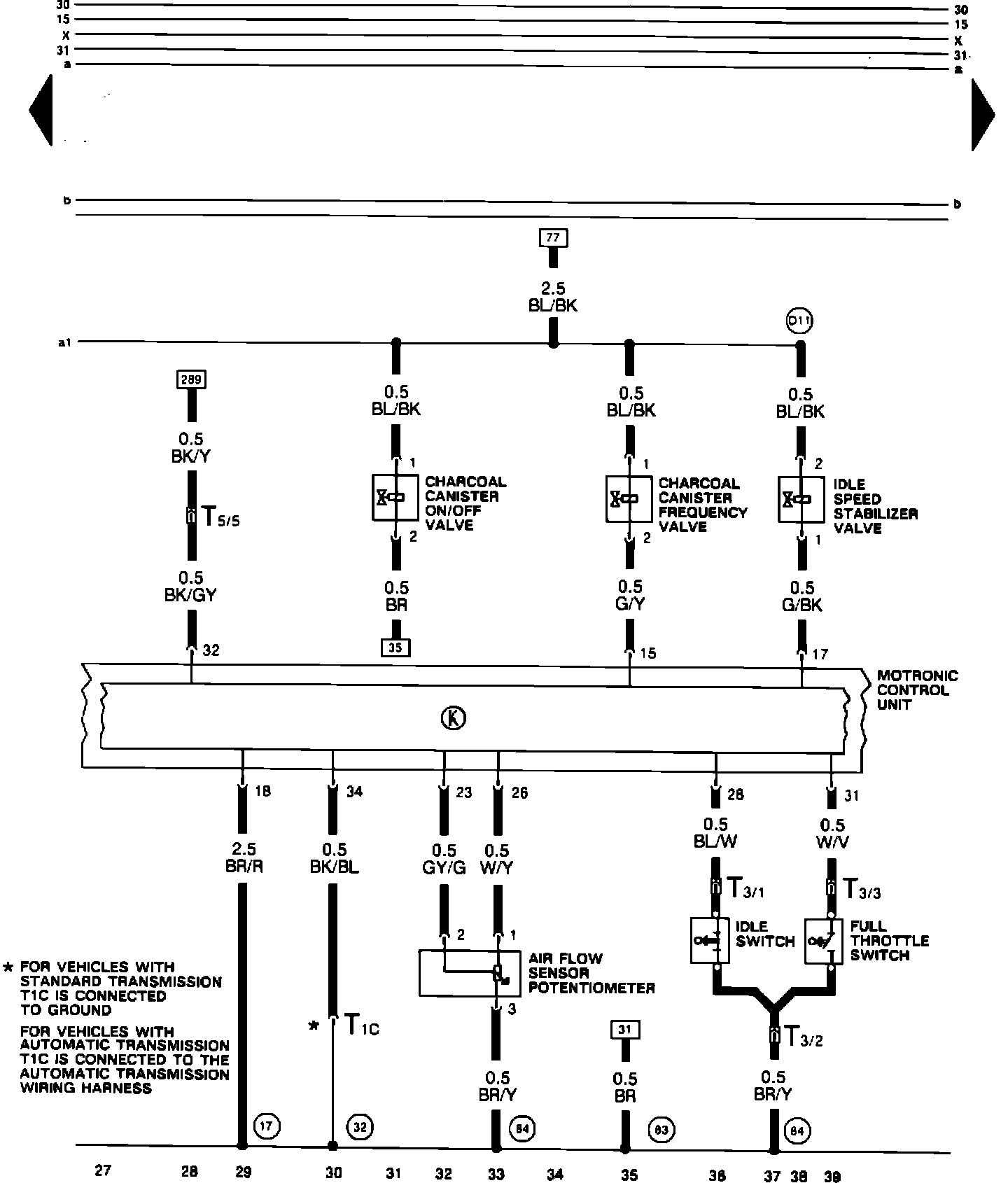

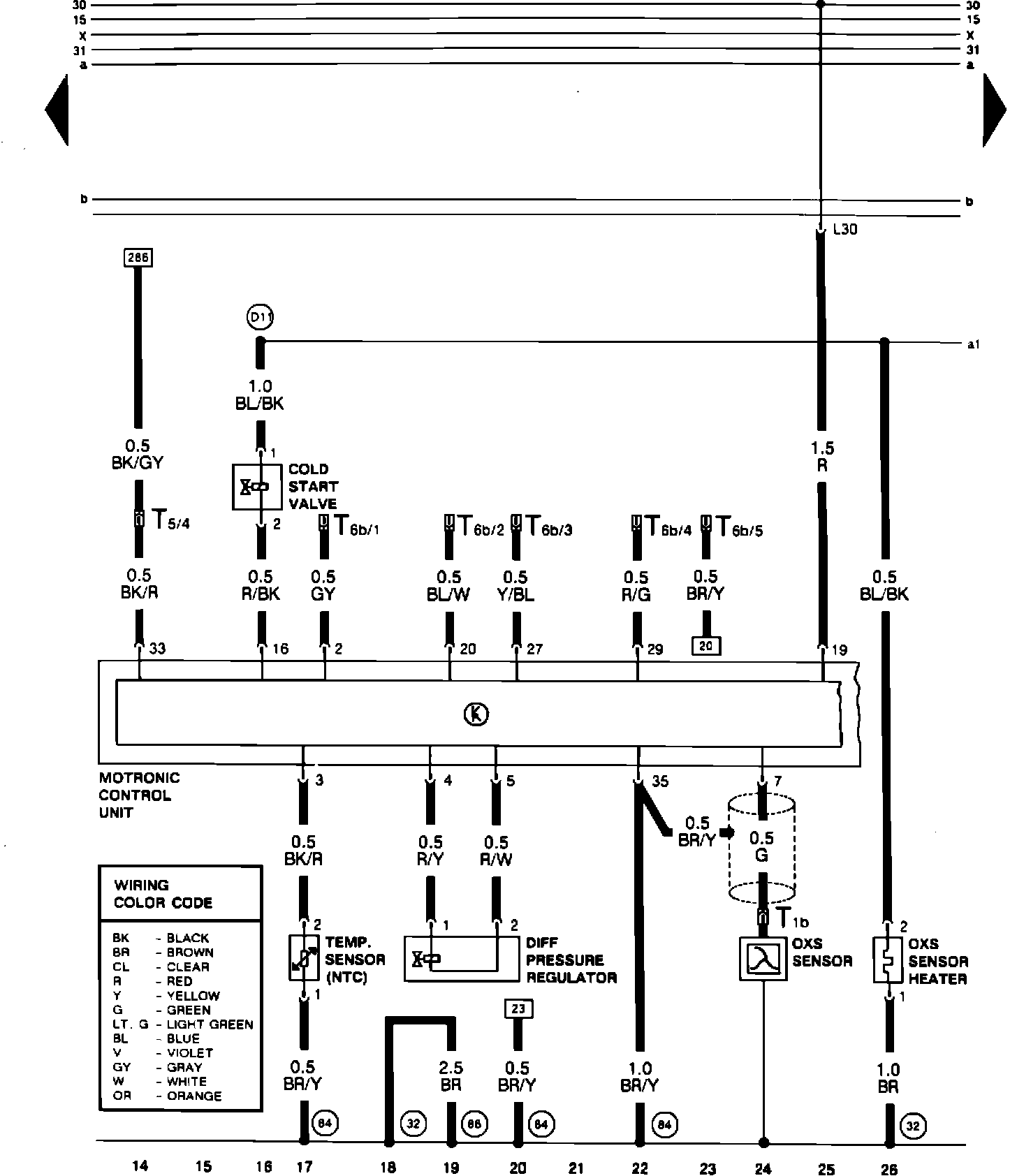

Main Harness - Wiring Diagram
>>
Motronic Control Unit Grounds
Motronic Control Unit Grounds
Motronic Control Unit
Motronic Control Unit Grounds

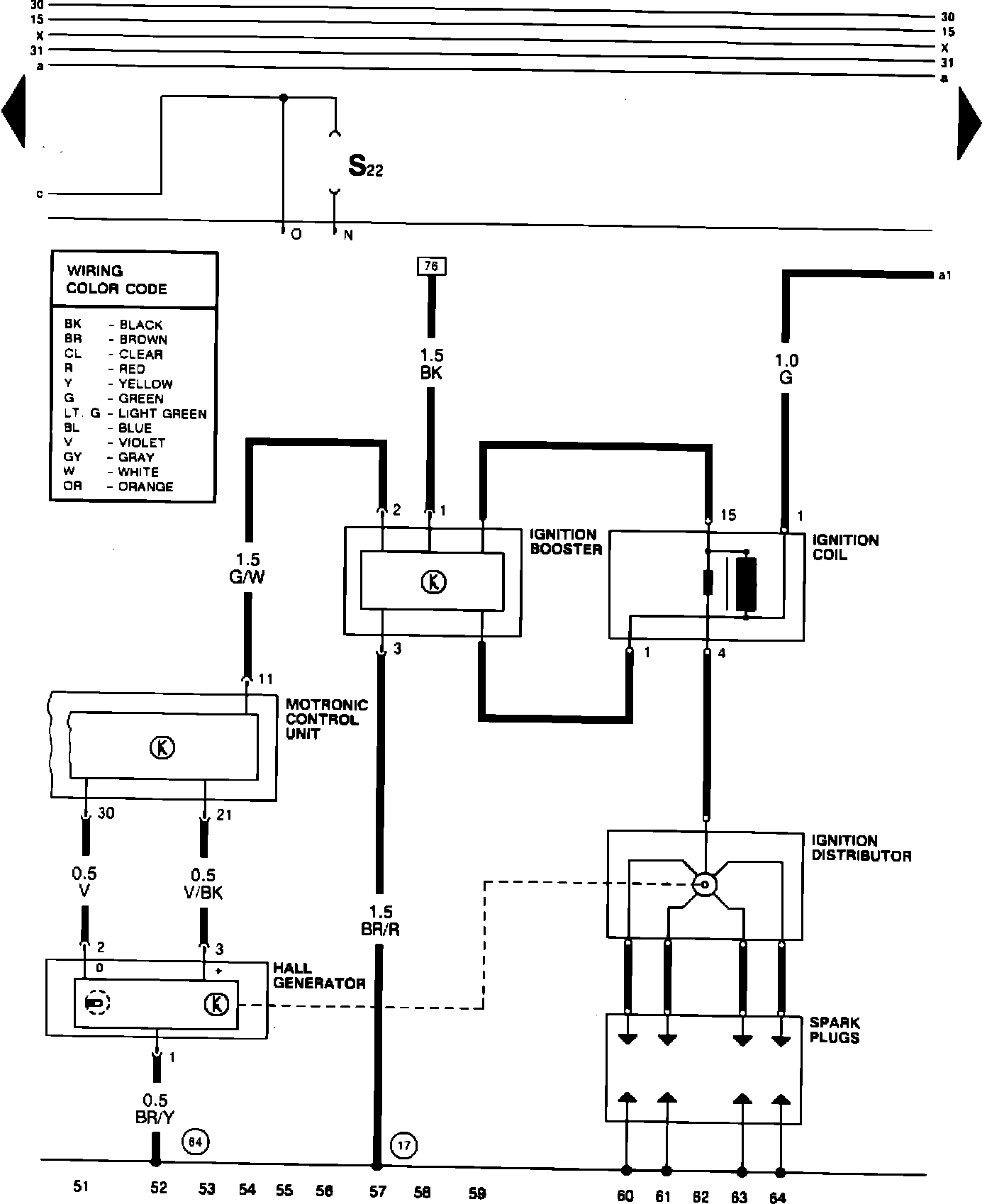

Motronic Control Unit Ignition System
