Fuse/Relay Panel

FUSE/RELAY PANEL:

Fuse arrangement
according to the numbers on fuse panel from left to

right: Amp.

1 Fog light . . . . . . . . . . . . . . . .15 2 Emergency flash switch . . . . . . . . . 5 3 Horns, brake light switch . . . . . . . .25 4 Luggage compt. light, cigar lighter, interior lights . . . . . . . . . . . . 15 5 Radiator coolant fan . . . . . . . . . .30 6 Taillights, side marker light, RH . . . 5 7 Taillights, side marker light, LH . . . .5 8 Headlight, RH hi beam . . . . . . . . .10 9 Headlight. LH hi beam . . . . . . . . .10 10 Headlight, RH lo beam . . . . . . . . .10 11 Headlight, LH lo beam . . . . . . . . .10 12 Instrument cluster, back-up lights . . 15 13 Fuel pump . . . . . . . . . . . . . . .15 14 License plate lights, glove box light, engine compt. light, instrument cluster lights . . . . . . . . . . . .5 15 Washer/wipers . . . . . . . . . . . . 25 16 Rear defogger . . . . . . . . . . . . 30 17 Blower motor, air conditioning . . . 30 18 Power mirrors . . . . . . . . . . . . .5 19 Central locking system . . . . . . . 10
Amp.

20 Radiator coolant fan, blower switch . . . .30 21 Open . . . . . . . . . . . . . . . . . . . . 22 Open . . . . . . . . . . . . . . . . . . . 23 Open . . . . . . . . . . . . . . . . . . . . 24 Motronic control unit . . . . . . . . . . . 10 25 Heated seats . . . . . . . . . . . . . . . . 30 26 Open . . . . . . . . . . . . . . . . . . . . 27 Open . . . . . . . . . . . . . . . . . . . . 28 Motronic control unit . . . . . . . . . . . .15

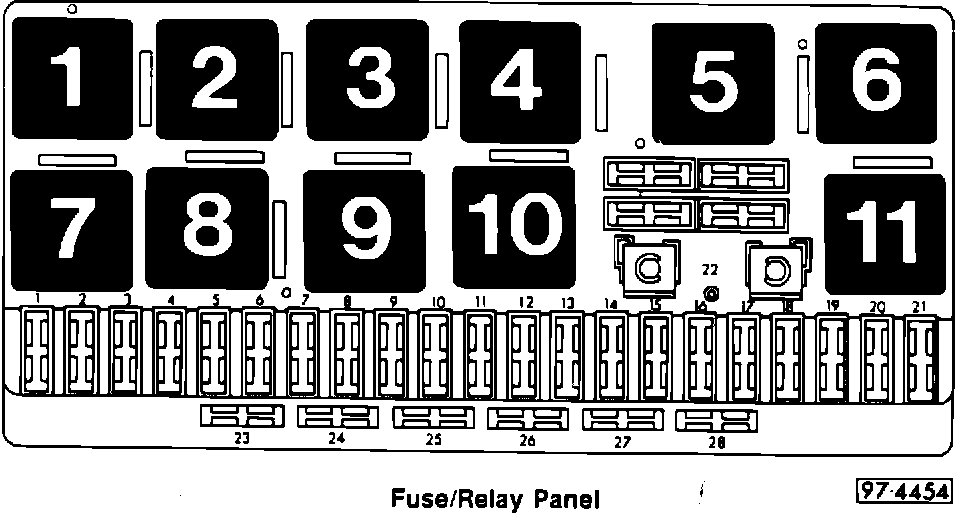

Relay location on Fuse/Relay Panel [1] - Fog light relay [2] - Rad. cooling fan high speed relay [3] - Upshift control unit [4] - Open [5] - Load reduction relay [6] - A/C relay [7] - Horn relay [8] - Auto-trans. relay [9] - Wash/wipe intermit. relay [10] - Motronic control relay [11] - Rad. cooling fan low speed relay
Fuse/Relay panel, rear view



A - Air conditioning connector color: gray B - Right front wiring harness connector color: black
C Instrument panel connector color: blue
D - Left front wiring harness connector
color: green
E - Left front wiring harness connector
color: yellow
F - Instrument panel connector color:
brown
G - Instrument panel connector color: red
H - Rear wiring harness connector color:
black
I - Instrument panel connector color: red
J - Instrument panel connector color:
yellow
K - Connected to relay 3 connector color:
yellow
L - Single connector (terminal 30)
connector color: colorless M - For optional equipment connector color:
colorless
N - not used
O - not used
P - To fuse 20
