Thermostatic Air Cleaner: Description and Operation

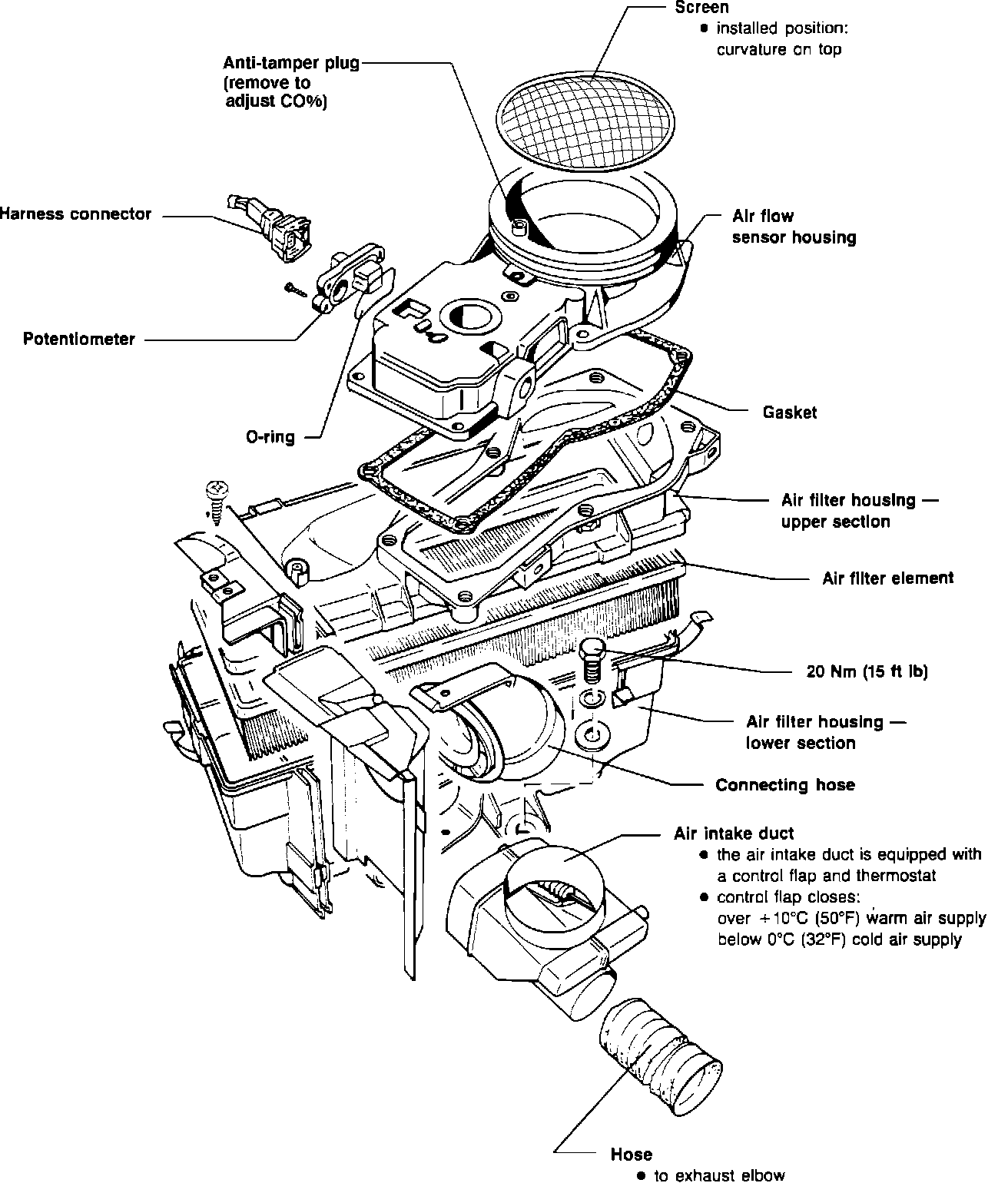

Fig. 20 Air Flow Meter, Exploded View:

This system, Fig. 20, takes hot air from near the exhaust to warm up the intake air during cold weather operation. Warming the intake air produces better fuel atomization and improved driveability during warm-up, and while driving in very cold weather.
