Blower Motor Resistor: Service and Repair

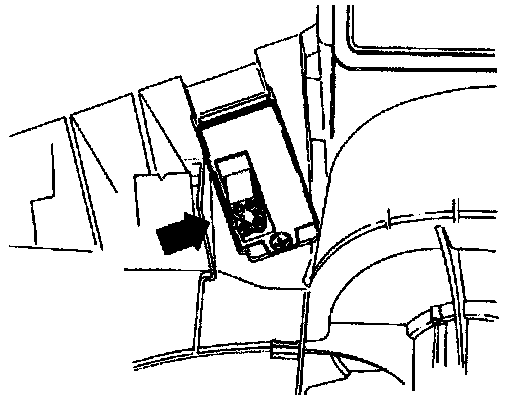

Fresh Air Blower Series Resistance:
-
Remove glove compartment.
-
Remove series resistance.
-
Install in reverse order of removal.
