Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Audi
>>
1988
>>
5000S Wagon L5-2309cc 2.3L SOHC (NF)
>>
Repair and Diagnosis
>>
Diagrams
>>

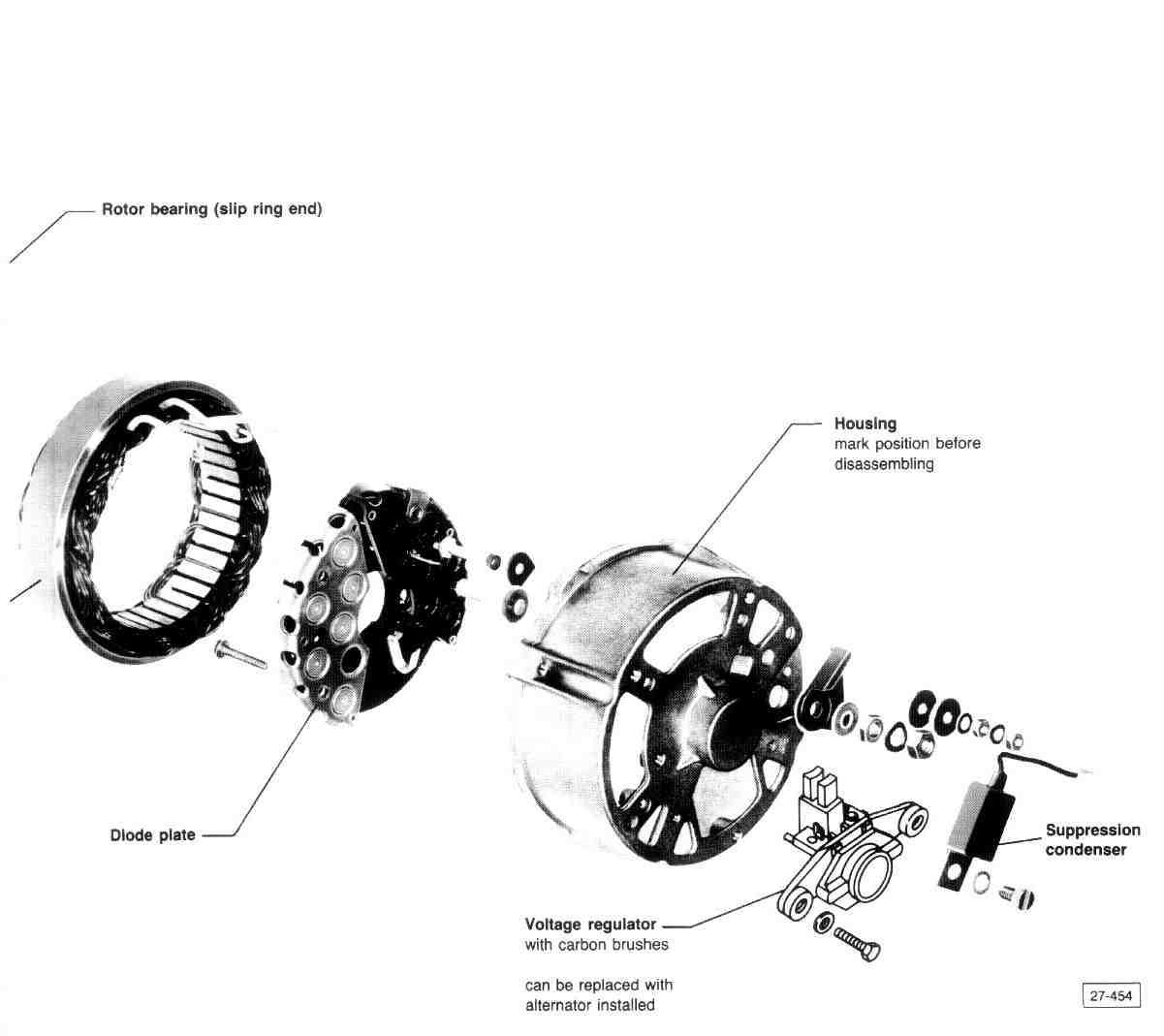

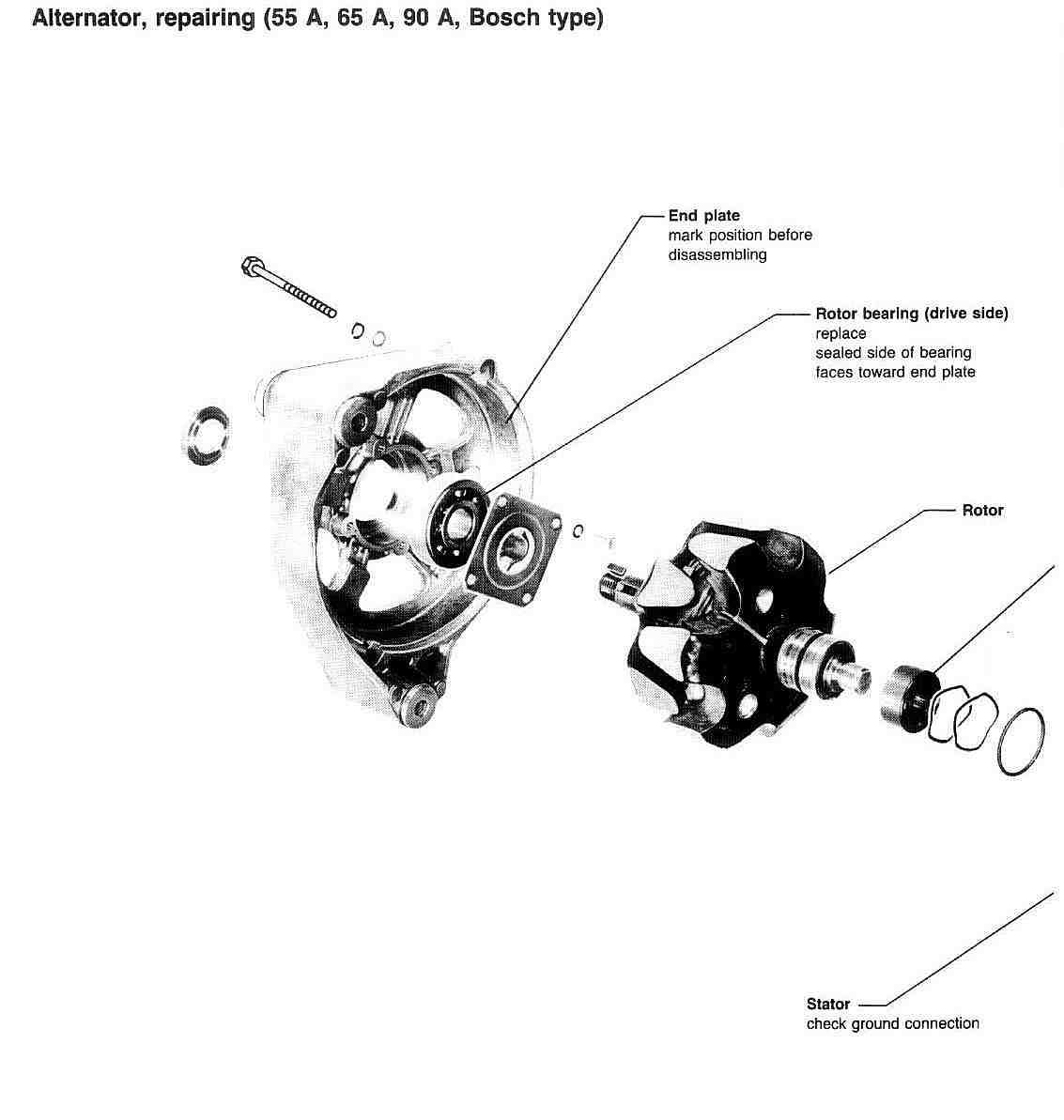

Exploded Views
>>
Alternator
Alternator
Bosch
Alternator
