Audi
>>
1986
>>
Coupe GT L5-2226cc 2.22L SOHC (KX)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Diagram Information and Instructions
>>
Diagrams By Track Number
>>
Tracks 1 Thru 190
>>
Track 61 Thru 72
Track 61 Thru 72

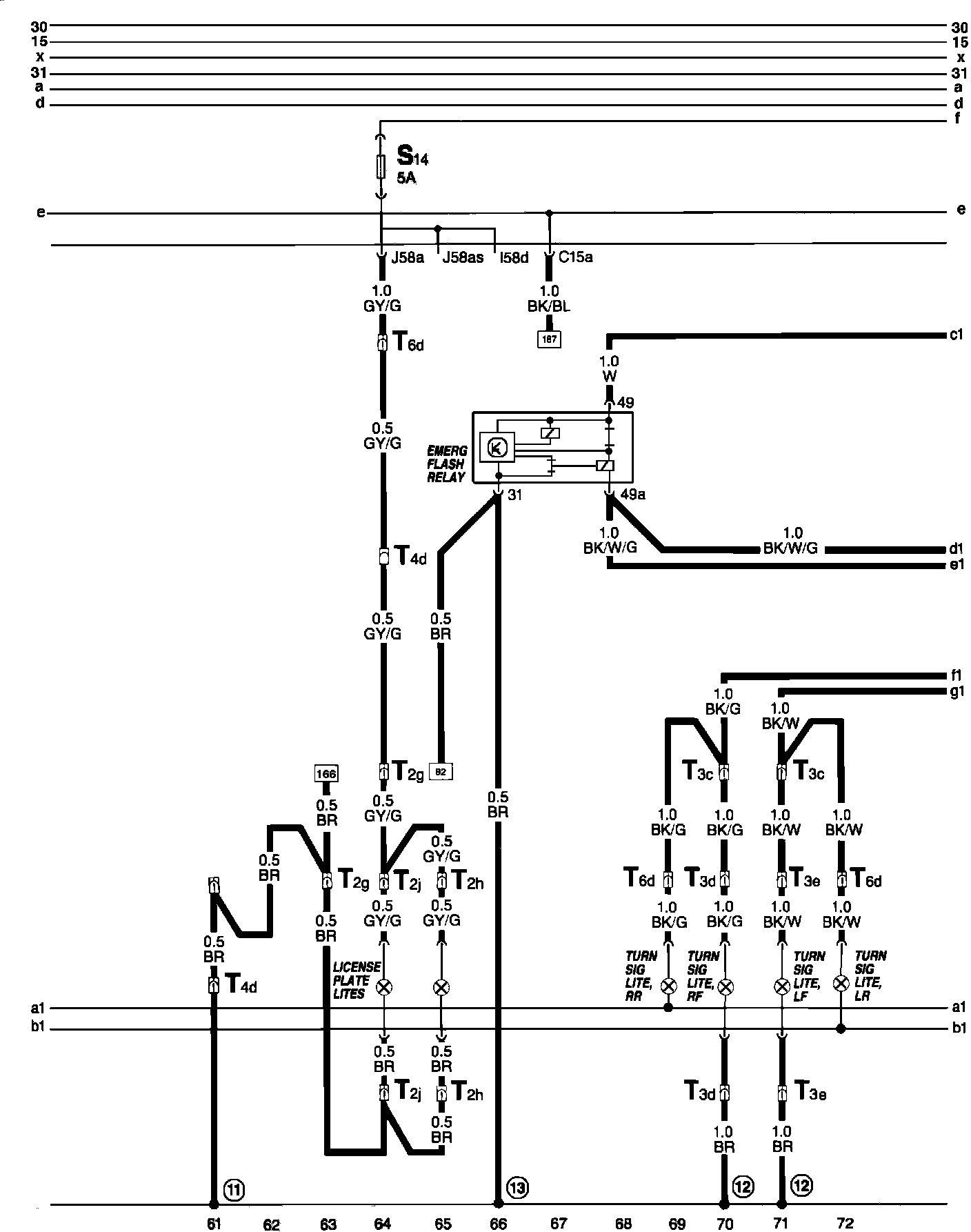

Emergency Flasher and Turn Signals. Wiring Diagram:
